1500lb Lift Check Valve LF2 2 Inch RF End: High-Pressure Reliability
1500lb Lift Check Valve LF2 2 Inch RF End: High-Pressure Reliability
In critical industrial piping systems where backflow prevention is essential, the 1500lb Lift Check Valve LF2 2 Inch RF End stands as a pinnacle of engineering excellence. This high-pressure valve combines robust construction with precision design to deliver exceptional performance in the most demanding applications. Engineered specifically for systems requiring superior pressure containment and reliable operation, this lift check valve provides the dependable protection your operations demand.
Key Features & Benefits
Superior Material Construction
Crafted from premium ASTM A350 LF2 low-temperature carbon steel, this valve delivers exceptional toughness and reliability even in extreme conditions. The LF2 material ensures outstanding performance in low-temperature environments while maintaining structural integrity under high pressure loads.
Precision-Engineered Sealing
The valve features a precision-machined disc and seat assembly that ensures bubble-tight shutoff. This design minimizes leakage risk and provides reliable backflow prevention even under fluctuating pressure conditions, protecting your equipment and processes.
RF End Connections
The Raised Face (RF) end connections conform to ASME B16.5 standards, ensuring perfect compatibility with your existing piping infrastructure. This standardized connection type facilitates straightforward installation while providing a secure, leak-resistant seal under high-pressure conditions.
Responsive Flow Control
The internal spring-assisted mechanism ensures rapid closure when flow reverses, minimizing water hammer effects and protecting your system from damage. This responsive design delivers consistent performance across varying flow rates and pressure conditions.
Ready to enhance your system’s reliability?
Our 1500lb Lift Check Valve LF2 2 Inch RF End is engineered for the most demanding industrial applications. Contact our technical team today for expert guidance on integration with your specific system requirements.

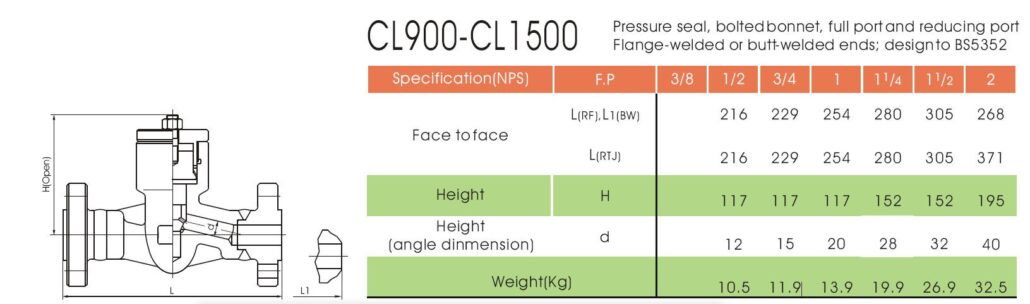

Технические характеристики
| Спецификация | Details |
| Размер | 2 Inch (DN50) |
| Pressure Class | 1500lb (PN250) |
| Body Material | ASTM A350 LF2 |
| Trim Material | 13Cr / ASTM A182 F6 |
| Концевое соединение | Raised Face (RF) per ASME B16.5 |
| Стандарт дизайна | ASME B16.34, API 602 |
| Face-to-Face Dimension | Per ASME B16.10 |
| Testing Standard | API 598 |
| Temperature Range | -50°C to +425°C (-58°F to +800°F) |
| Seat Type | Metal-to-metal |
| Flow Direction | Unidirectional |
| Applicable Media | Water, Steam, Oil, Gas, Chemical |
Design & Working Principle
Lift Check Valve Operation
The lift check valve operates on a simple yet effective principle. When fluid flows in the forward direction, pressure forces the disc to lift from its seat, allowing media to pass through. The disc moves parallel to the flow axis, guided by the valve body to ensure proper alignment.
When flow stops or reverses, the combination of gravity, spring force, and reverse flow pressure quickly returns the disc to its seat, creating a tight seal that prevents backflow. This rapid response is critical in high-pressure applications where backflow can cause significant damage.
High-Pressure Performance
The 1500lb pressure class design incorporates reinforced body walls and precision-machined components that work together to contain extreme pressures. The robust construction of this valve makes it ideal for critical applications where failure is not an option.
The spring-assisted closure mechanism ensures positive shutoff even in low-flow or low-differential pressure conditions. This design prevents the “flutter” that can occur in some check valves, extending the service life and improving reliability in your system.
Maintenance Considerations
The valve’s design prioritizes longevity and ease of maintenance. The bolted bonnet construction allows for straightforward access to internal components when service is required. All wear surfaces are hardened and precision-finished to extend service intervals and reduce maintenance costs over the valve’s operational life.
Приложения
Oil & Gas Processing
In refineries and processing plants, our 1500lb lift check valves protect critical equipment from damaging backflow in high-pressure hydrocarbon service. The LF2 material provides excellent performance in the varying temperature conditions common in these facilities.
Power Generation
Our lift check valves are widely used in power plant boiler feed systems, steam lines, and condensate return lines. The 1500lb pressure rating makes these valves ideal for supercritical boiler applications where system integrity is paramount.
Chemical Processing
In chemical manufacturing facilities, our check valves provide reliable protection against backflow in high-pressure reactors and process lines. The robust construction ensures long-term performance even in challenging chemical environments.
Mining & Mineral Processing
The exceptional durability of our 1500lb lift check valves makes them ideal for high-pressure slurry applications in mining operations. The metal-to-metal seating provides reliable service even in abrasive media conditions.
Offshore Platforms
Offshore operations rely on our LF2 lift check valves for their excellent low-temperature performance and corrosion resistance in marine environments. The 1500lb pressure rating provides the necessary safety margin for these critical applications.
Water Injection Systems
In high-pressure water injection applications for enhanced oil recovery or industrial processes, our lift check valves provide reliable backflow prevention to protect expensive pumping equipment and maintain system integrity.
Find the right valve for your specific application
Our engineering team can help you select the optimal valve configuration for your unique operational requirements. Contact us today for expert consultation and technical support.
Contact Our Engineers
Why Choose Our 1500lb Lift Check Valve
Преимущества
- Superior LF2 material construction for excellent low-temperature toughness
- 1500lb pressure class rating for demanding high-pressure applications
- Precision-engineered disc and seat for bubble-tight shutoff
- Spring-assisted closure for rapid response to flow reversal
- Full compliance with industry standards (ASME, API)
- Extended service life with minimal maintenance requirements
- Versatile performance across a wide range of media and temperatures
Our 1500lb Lift Check Valve LF2 2 Inch RF End represents the pinnacle of valve engineering for high-pressure applications. With its robust construction, precision manufacturing, and comprehensive testing, this valve delivers the reliability and performance that critical industrial systems demand. Every valve undergoes rigorous quality control to ensure it meets or exceeds all applicable industry standards.
When system integrity and operational safety are non-negotiable, trust our high-pressure lift check valves to provide the protection your valuable equipment deserves. Our commitment to quality and performance makes us the preferred supplier for discerning engineers and procurement specialists worldwide.
