Understanding the Pros and Cons of Ball Valves

Июнь 20, 2025/в Новости отрасли /от СТВВАЛАВЕ

Ball valves are commonly used in factories due to their fast operation and tight sealing. Understanding the advantages and disadvantages of ball valves is essential for selecting the right valve for your needs. While they require minimal maintenance, ball valves are not suitable for thick or dirty fluids and are not ideal for throttling applications. As demand for these valves is expected to grow by 2032, with some users experiencing up to 15% improved efficiency from new designs, making an informed decision is crucial. To ensure quality and reliability, consider trusted suppliers like ina Cast Steel Ball Valve Manufacturer Stv Supplie when choosing your ball valves.

Key Takeaways

Шаровые краны open and close fast with a quarter turn. This makes them great for quick shut-off in clean fluid systems. They give a tight seal that stops leaks. They also work well with high pressure and heat. Ball valves do not need much care and last a long time. This is true when used with clean liquids or gases. They are not good for changing flow speed. They also do not work well with thick, dirty, or rough fluids. These fluids can hurt or block the valve. Pick the right valve material and size for your fluid type. Also, check your system pressure to keep things safe and working well.

What Are Ball Valves?

Состав

You can think of a шаровой кран as a simple device with a round ball inside. This ball has a hole through its center. When you turn the handle, the hole lines up with the pipe, letting fluid flow. If you turn the handle again, the ball rotates and blocks the flow. Ball valves come in different sizes and shapes to fit many needs.

Here is a table that shows some common measurements and parts you might find in ball valves:

Measurement Parameter	Details / Examples
Valve Size (DN or NPS)	From 1/4 inch (DN8) to 12 inches (DN300)
Port Size	Full port (bore = pipe size), Reduced port (smaller bore)

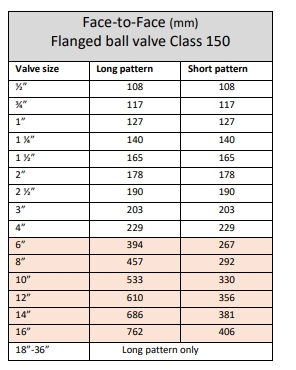

End-to-End Length	108 mm (1-inch valve), 229 mm (4-inch valve)
Flange Diameter	150 mm (2-inch valve), 280 mm (6-inch valve)
Stem Height	50 mm to over 200 mm (for actuator mounting)
Pressure Rating	150 psi, 300 psi, 550 psi
Connection Types	Threaded, Flanged
Standards Referenced	ANSI, API, ASME, BS, DIN, JIS, GB

Ball valves use strong materials to handle pressure and temperature. You might see bodies made from steel or stainless steel. Seats often use RPTFE or PEEK for better sealing. The stem and ball can be stainless steel or other tough metals. Here is a quick look at some parts and their materials:

Наименование	Material Options (Examples)
Тело	ASTM A105, F304(L), F316(L)
Сиденье	RPTFE, PEEK
Корень	410, 304(L), 316(L)
Мяч	F6, F304(L), F316(L)
O-ring	VITON

You will also find different body styles, such as one-piece, two-piece, or three-piece designs. Some valves have split bodies or top-entry features for easier maintenance.

Операция

You operate a ball valve by turning its handle a quarter turn, or 90 degrees. This simple movement opens or closes the valve quickly. When the handle lines up with the pipe, fluid flows straight through. When you turn the handle perpendicular to the pipe, the ball blocks the flow completely.

Ball valves work well in high-pressure and high-temperature situations. You get reliable shut-off and very little leakage. Many industries, like oil and gas or water treatment, use ball valves because they save time and reduce downtime. The fast quarter-turn action means you can open or close the valve in seconds. This helps prevent leaks and keeps your system running smoothly.

However, you should know that closing a ball valve too quickly can cause a water hammer. This is a sudden pressure surge that can damage pipes. Some new ball valves use smart technology to monitor performance and improve efficiency. You can also find valves with special designs to control flow better or handle tough fluids.

Tip: Always check the valve size, material, and pressure rating before choosing a ball valve for your system. This helps you avoid problems and get the best performance.

The Advantages and Disadvantages of Ball Valves

Преимущества

Many industries use шаровые краны for fluid control. They have many good points:

Leak-proof Service
Ball valves stop leaks very well. They keep fluids inside, even after lots of use. The seats press tightly against the ball. This works at both low and high pressures.
Quick Quarter-turn Operation
You only turn the handle a little to open or close it. This helps you stop flow fast in emergencies. It also makes work go faster.
Durability and Long-lasting Performance
Ball valves are made from strong materials. Stainless steel and PTFE seals last a long time. They do not rust or wear out easily. Good ball valves last longer and need less fixing. In oil and gas, they work longer and cost less to fix.
Minimal Pressure Drop
The full-bore design lets fluid move straight through. This means less energy is lost. Your system stays efficient.
Compactness and Versatility
Ball valves are small and simple. You can put them in tight spaces. They work with water, gas, oil, and chemicals.
Low Maintenance and Cost-effectiveness
Ball valves have few parts. This means less can break. You spend less time and money fixing them. Three-piece ball valves are even easier to fix. You can change parts without taking out the valve. This saves time and money.
Reliable Shut-off and Safety Features
Ball valves shut off flow very well. This keeps people and systems safe. Some have fire-safe seals and pressure relief. Others have anti-blowout stems. These features protect everyone.
Suitability for Various Media
Ball valves work with clean liquids, gases, and some chemicals. If you pick the right material, you can use them in many jobs.

Here is a table that shows some top features and their benefits:

Feature / Test Result	Description / Quantified Benefit
Stability and Low Torque	Trunnion design makes turning easier and parts last longer.
Reduced Wear and Tear	Low friction means the valve lasts longer and needs less fixing.
Suitability for Large Sizes	Works well for big valves and high pressure, keeping things safe.
Fire-Safe Design	Metal seals stop leaks during fires, making things safer.
Automatic Pressure Relief	The seat moves to let out extra pressure, keeping the system safe.
Dependable Sealing	PTFE rings keep a tight seal, even if they wear down.

Tip: If you want a valve that is easy, safe, and saves money, ball valves are a great choice.

Disadvantages

Ball valves have some limits you should know about. Here are the main problems:

Not Ideal for Throttling
Ball valves do not control flow well when partly open. This can cause rough flow and uneven pressure. Studies show flow drops a lot when not fully open. Pressure goes up too. Other valves control flow better.
Potential Wear in Certain Conditions
If you use ball valves with gritty fluids, they wear out faster. Dirty fluids can scratch the ball and seats. This can make leaks happen over time.
Size and Cost Considerations
Big ball valves or special types cost more at first. You save money later, but the first price is higher. This is true for big pipelines.
Limited Suitability for Slurries or Dirty Fluids
Ball valves work best with clean fluids. Thick or dirty fluids can clog them or hurt the seals. This can cause leaks or make them hard to use.
Possible Water Hammer
Turning the valve fast can stop flow suddenly. This can cause a water hammer. Pipes can get damaged if you are not careful.
Maintenance Complexity for Some Designs
Most ball valves are easy to fix. But some fancy or automatic ones need special tools or skills.

Here is a table that lists some limits:

Limitation	Описание
Poor Throttling Performance	Hard to control flow, rough flow, and more pressure when not fully open.
Wear with Abrasive Media	Ball and seat wear out faster with dirty fluids.
Higher Initial Cost (Some Types)	Special types cost more at first.
Not for Thick/Sticky Fluids	Can get clogged or seals can get damaged.
Water Hammer Risk	Fast closing can cause pressure surges that hurt pipes.

Note: Always think about the fluid, pressure, and how you will use the valve before you choose. The good and bad points of ball valves depend on what you need.

When to Use Ball Valves

Best Applications

Шаровые краны are great when you need to stop flow fast. They work best with clean liquids or gases. You can open or close them with a quick turn. This makes them good for emergencies. Ball valves can handle high pressure and heat. For example, they work at 50-60 bar and from 25°C to 350°C. Leak tests show very little leakage over four hours. These valves meet tough industry rules, so you can trust them for many jobs.

You should use ball valves in these cases:

Turning water, oil, or gas lines on or off
Systems with high pressure or heat
Jobs that need quick shut-off
Clean fluids with no dirt or debris
Places where you want less fixing and long use

Here is a table to help you compare:

Aspect	Ball Valves (Best For)	Plug Valves (Best For)
Pressure Ratings	High pressure, tight sealing	Low to medium pressure
Maintenance	Clean fluids, less maintenance	Dirty/thick fluids, easy clean
Application Suitability	Fast shut-off, clean media	Dirty fluids, simple on/off

Tip: Pick a ball valve if you want fast shut-off in a clean system.

Unsuitable Situations

Ball valves are not good for every job. If you need to control flow speed, do not use them. They do not give fine control and can get damaged if partly open. Tests show that using them this way causes wear and seal problems. Fast flows can wear out the valve. If you use slurries or dirty fluids, ball valves can clog. Dirt and bits can build up and cause leaks or make the valve hard to turn. In these cases, try globe or gate valves instead.

Do not use ball valves in these cases:

When you need to control flow speed
Systems with slurries, sand, or rough bits
Dirty or sticky fluids that can block the valve
Jobs where you open and close the valve partway a lot

Note: Always pick the right valve for your fluid and needs. For dirty or rough fluids, or when you need careful flow control, use a different valve to avoid trouble.

You now know the good and bad sides of шаровые краны. Ball valves shut off flow fast and need little fixing. They work well in systems with high pressure. But they are not good for controlling flow or thick fluids.

Материал	Key Characteristics	Typical Applications
Нержавеющая сталь	Strong and does not rust	Chemicals, water pipes
Латунь	Cheap and works well	Home plumbing, gas lines
PVC	Light and not expensive	Water cleaning, farms
Углеродистая сталь	Very strong, handles pressure	Oil and gas pipes

Pick a valve that fits your system’s needs. Think about how much pressure you have and what fluid you use. Also, think about how often you will use the valve. Ball valves are good if you want quick shutoff and little fixing. If you need to control flow or have dirty fluids, try a different valve.

Часто задаваемые вопросы

What is the main reason to choose a ball valve?

You should choose a шаровой кран when you need fast shut-off and a tight seal. Ball valves work well with clean liquids or gases. They last a long time and need little fixing.

Can you use a ball valve to control flow speed?

You should not use a шаровой кран to control flow speed. Ball valves do not give smooth control. They work best fully open or fully closed. For flow control, try a globe valve.

How do you know which material to pick for your ball valve?

Pick the material based on what flows through your system. Here is a quick guide:

Fluid Type	Best Material
Water	Brass, Stainless
Chemicals	Stainless, PVC
Oil/Gas	Углеродистая сталь

Tip: Always check if the material resists rust and damage from your fluid.

What should you do if your ball valve leaks?

First, check if the handle is fully closed. If it still leaks, look for dirt or damage on the seals. You may need to clean or replace the valve. Always turn off the system before fixing leaks.
