Description
Technical Specifications
-Design: ASME 16.34/ API 6D/ API 600/ BS 1414
-Face to Face: ASME B16.10
-End Flange: ASME B16.5, ASME B16.47
-BW End: ASME B16.25
-Test: API 598/ API 6D/ BS 6755
-Special: NACE MR-01-75
Design Features
-OS & Y, Rising stem
– Bolted Bonnet with spiral-would gasket
-Flexible Wedge
-Backseat Weld-Deposited
-Threaded or welded seat ring
-Renewable seat rings
-Extended Bonnet for Cryogenic Service
-Flanged or butt welded ends.
-By Pass on Request
-Locking Device Optional
Product Range
-Valve size:
2″ ~ 48″ (DN50-DN1200)
-Pressure:
ANSI Class 150~2500(PN16-PN420)
-Temperature:
-196ºC~ 500ºC
-Body Materials:
Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
-Trim (Disc/Stem):
Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel

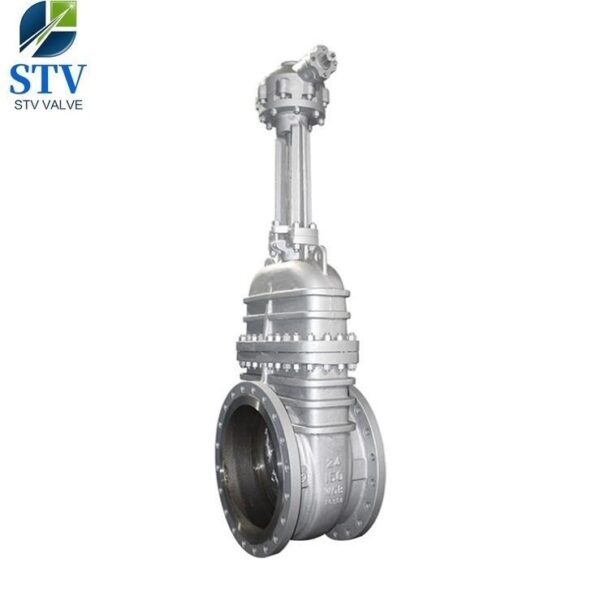

| Product Name | 24 Inch API 600 Carbon Steel Flanged Gate Valve,ANSI 150lb,Gear Box OP |
| 1. Material | WCB |
| 2. Size | 24” |
| 4. Port | Full Port |
| 5. Working Pressure | 150lb |
| 6. Connection Ends | RF |
| 7. Working Temp. | -29~425ºC, |
| 8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| 9. Operated | Gear Box OP |
| 10. Inspection & Testing | According to API598 |
| Shipment | |
| Delivery Time | 30 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shipping | |
| Country of Origin | Wenzhou city, China |
| Production Capacity | 6000 ton/year |
| MOQ | 1 PCS/size |
