Sizes available: 1″ to 4″, DN25 to DN100
End connection: tri-clamp / tri-clamp
Body & Disc: AISI 304 or 316L, (EN1.4301/EN1.4404)
Seat: Teflon (PTFE)
3-way Flow Plan: T type or L type available for choose from
Max. working pressure: 145psi (10bar)
Temperature range: 14°F ~ 248°F (-10°C ~ 120°C) as default, higher available upon request.

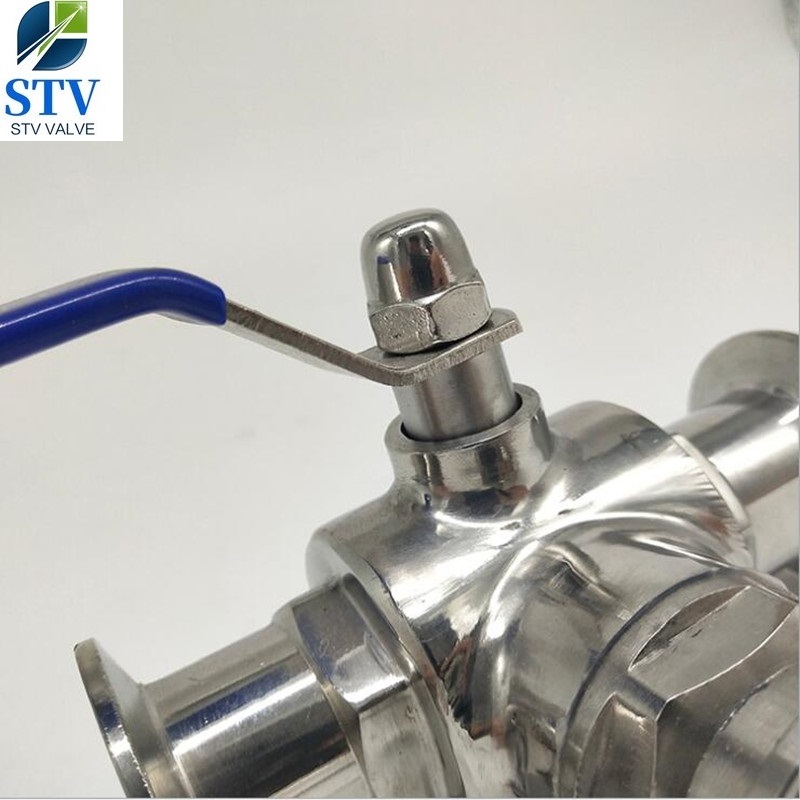

Operation: Manual Handle
Surface treatment: Ra 32μin (0.8μm) as default, Ra 16μin (0.4μm) as best.
