Description

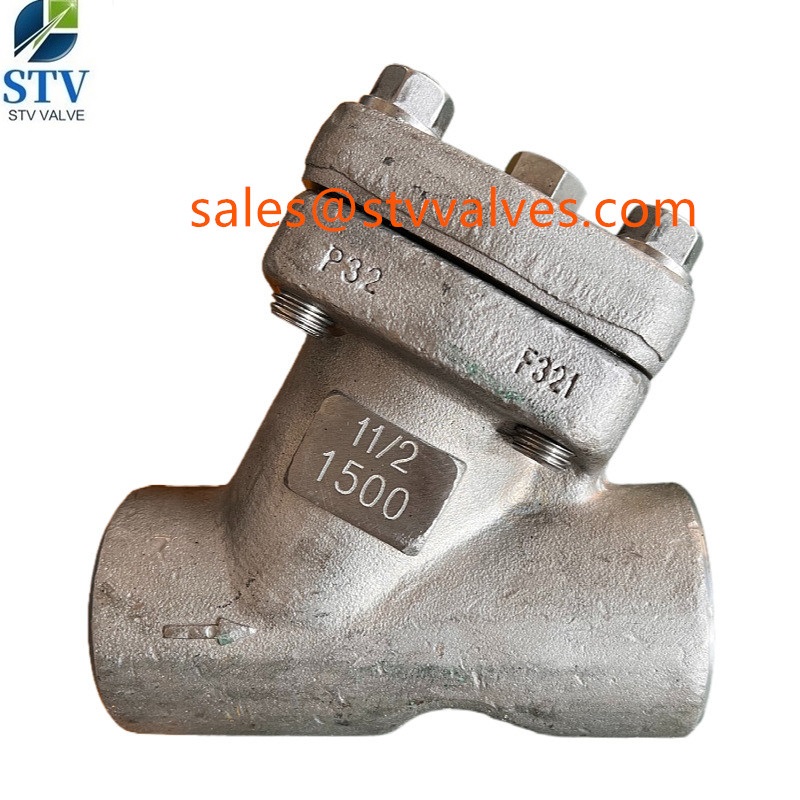

A182 F321 Y Strainer, Class 1500 LB, DN40, Socket Weld End
- Material: ASTM A182 Grade F321 Stainless Steel body.
- Design Standard: Conforms to ASME B16.34 or API 602 standards for high-pressure, high-temperature service.
- Filter Screen: Usually fitted with a perforated or woven mesh made of 304, 316, or 316L Stainless Steel.
- Connection Types: Available in threaded (NPT), socket weld (SW), or flanged ends.
- Pressure Ratings: Commonly rated from 150 LB to 2500 LB (or up to 4500 LB for specialized applications).
- High-temperature piping: Suitable for operating environments up to 600 °C (1112 °F).
- Equipment Protection: Essential for safeguarding pumps, control valves, and steam traps from solid particles, scale, and dirt.
- Industry Suitability: Widely used in power generation, petrochemical plants, and heavy refining operations
High-Pressure Forged Stainless Steel Y Strainer for Steam, Petrochemical, and High-Temperature Applications
The ASTM A182 F321 Y Strainer, Class 1500 LB, DN40 (1½ Inch), Socket Weld End is a premium forged stainless steel pipeline strainer designed for removing solid particles and protecting pumps, valves, meters, regulators, and other critical equipment in high-pressure systems. Manufactured from ASTM A182 F321 titanium-stabilized stainless steel, this Y-type strainer provides excellent resistance to intergranular corrosion, oxidation, and elevated temperatures.
Designed in accordance with ASME B16.34 and ASME B16.11, the Class 1500 forged Y strainer is widely used in steam systems, refineries, petrochemical plants, chemical processing facilities, and power generation applications where high pressure and temperature resistance are required.
Product Overview
| Item | Specification |
|---|---|
| Product Name | Forged Steel Y Strainer |
| Type | Y-Type Strainer |
| Size | DN40 (1½ Inch) |
| Pressure Rating | Class 1500 LB |
| Body Material | ASTM A182 F321 |
| Cover Material | ASTM A182 F321 |
| Screen Material | SS321 |
| Connection Type | Socket Weld (SW) |
| Connection Standard | ASME B16.11 |
| Design Standard | ASME B16.34 |
| Mesh Size | 20–200 Mesh Optional |
| Temperature Range | -29°C to 550°C |
| Applicable Media | Steam, Oil, Gas, Chemicals, Thermal Fluids |
What is ASTM A182 F321?
ASTM A182 F321 is a titanium-stabilized austenitic stainless steel similar to 304 stainless steel but with improved resistance to carbide precipitation and intergranular corrosion.
Advantages of F321 Stainless Steel
- Excellent high-temperature oxidation resistance
- Superior weldability
- Good creep strength
- Resistance to intergranular corrosion
- Suitable for continuous service up to 800°C
- Long service life in severe environments
Product Features
Forged Stainless Steel Construction
Forged construction provides:
- Higher strength than cast strainers
- Better grain structure
- Reduced porosity
- Improved fatigue resistance
- Enhanced pressure capability
Class 1500 High-Pressure Design
Suitable for:
- High-pressure steam systems
- Refinery process units
- Petrochemical plants
- Heat transfer systems
- Industrial utility pipelines
Socket Weld End Connection
SW ends provide:
- Leak-free welded joints
- Excellent vibration resistance
- High mechanical integrity
- Compact installation
Socket weld connections are widely used in small-bore high-pressure piping systems.
Replaceable Stainless Steel Screen
The precision screen effectively captures:
- Rust particles
- Welding slag
- Scale
- Metal debris
- Process contaminants
Protecting downstream equipment and reducing maintenance costs.
Technical Specifications
Materials of Construction
| Component | Material |
|---|---|
| Body | ASTM A182 F321 |
| Cover | ASTM A182 F321 |
| Screen | SS321 Stainless Steel |
| Drain Plug | SS321 |
| Gasket | Spiral Wound SS321 + Graphite |
| Bolting | ASTM A193 B8 |
Design Standards
| Standard | Description |
|---|---|
| ASME B16.34 | Valve and Fitting Design |
| ASME B16.11 | Socket Weld Connections |
| MSS SP-55 | Quality Requirements |
| EN 10204 3.1 | Material Certification |
| NACE MR0175 | Optional |
Working Principle
The Y strainer removes contaminants through a perforated stainless steel screen.
Operation Process
- Fluid enters the inlet.
- Debris and particles are trapped inside the screen.
- Clean fluid exits through the outlet.
- The screen is periodically cleaned or replaced.
This simple design helps ensure long-term system reliability.
Typical Applications
Power Generation Plants
Widely used in:
- Main steam systems
- Auxiliary steam lines
- Boiler feedwater systems
- Turbine protection systems
Power Plant Application
Petrochemical Industry
Suitable for:
- Hydrocarbon processing
- Utility steam systems
- Heat exchanger protection
- Process fluid filtration
Petrochemical Application
Oil Refining Facilities
Applied in:
- Thermal oil systems
- Process lines
- Pump suction pipelines
- Instrument protection systems
Chemical Plants
Ideal for:
- Solvent transfer systems
- Chemical dosing lines
- High-temperature process fluids
High-Temperature Steam Systems
The F321 material performs exceptionally well in elevated-temperature environments.
Advantages of A182 F321 Y Strainers
| Feature | Benefit |
|---|---|
| F321 Stainless Steel | High-temperature resistance |
| Forged Construction | Superior strength |
| Class 1500 Rating | High-pressure capability |
| Socket Weld Ends | Leak-free installation |
| Replaceable Screen | Easy maintenance |
| Corrosion Resistance | Long service life |
F321 vs F316 Stainless Steel
| Property | F321 | F316 |
|---|---|---|
| High-Temperature Resistance | Better | Good |
| Chloride Resistance | Good | Excellent |
| Intergranular Corrosion Resistance | Excellent | Good |
| Weldability | Excellent | Excellent |
| Steam Service | Superior | Good |
F321 is preferred for elevated-temperature applications, while F316 is generally favored for chloride-containing media.
Inspection and Testing
Every Y strainer undergoes comprehensive quality control:
Hydrostatic Pressure Test
Ensures pressure integrity.
PMI Material Identification
Verifies ASTM A182 F321 composition.
Dimensional Inspection
Ensures compliance with ASME B16.11 requirements.
Screen Inspection
Verifies filtration quality.
Visual Examination
Confirms forging and machining quality.
Optional Features
Mesh Size Options
- 20 Mesh
- 40 Mesh
- 60 Mesh
- 80 Mesh
- 100 Mesh
- 200 Mesh
Drain Connection Options
- NPT Plug
- Blow-Off Valve
- Ball Valve Drain
Special Compliance
- NACE MR0175
- EN 10204 3.1 Certification
- Third-Party Inspection (SGS, BV, DNV, TUV)
Material Upgrades
- F316L
- F347H
- Duplex Stainless Steel
- Hastelloy C276
Frequently Asked Questions
Why choose F321 stainless steel?
F321 contains titanium, providing excellent resistance to intergranular corrosion and improved high-temperature performance.
What is the purpose of a Y strainer?
It removes debris from pipelines to protect valves, pumps, meters, and other equipment.
Why use socket weld ends?
Socket weld connections provide stronger and more reliable joints in high-pressure piping systems.
Is Class 1500 suitable for steam service?
Yes. Class 1500 forged strainers are commonly used in high-pressure steam and refinery applications.
What industries use F321 Y strainers?
Power plants, petrochemical facilities, oil refineries, chemical plants, and high-temperature process industries.
Request a Quote
China Forged Stainless Steel Y Strainer Manufacturer
We provide:
✅ ASTM A182 F321 Forged Stainless Steel Solutions
✅ ASME B16.34 & ASME B16.11 Compliant Manufacturing
✅ Class 1500 High-Pressure Y Strainers
✅ Custom Mesh Sizes Available
✅ Third-Party Inspection Support
✅ Worldwide Export Experience
Please provide:
- Size (DN40 / 1½ Inch)
- Pressure Rating (Class 1500)
- Connection Type (SW)
- Mesh Size Requirement
- Operating Temperature
- Media Type
- Quantity Required
Our engineering team will provide a detailed quotation, technical datasheet, GA drawing, material certificates, and delivery schedule within 24 hours.
