Description
Applicable Standards:
Globe Valve, BS1878/ASME B16.34
Steel Valves, ASME B16.34
Face to face ASME B16.10
End Flanges ASME B16.5/ASME B16.47
Butt Welding ends ASME B16.25
Inspection and test API 598
Material: C95800,C95400,C95500,C83600,
Size Range: 2″~36″
Pressure Rating: ASME CL, 150, 300, 600, 900, 1500, 2500
Temperature Range: -196℃~650℃
Design Description:
– Outside Screw and Yoke
– Bolted Bonnet and Pressure Seal
– Rising stem
– Available with gear operator
– Flange Ends & Buttwelding Ends
– Low torque design, smooth surface stem.
Operation: handwheel, gear box, electric, etc.

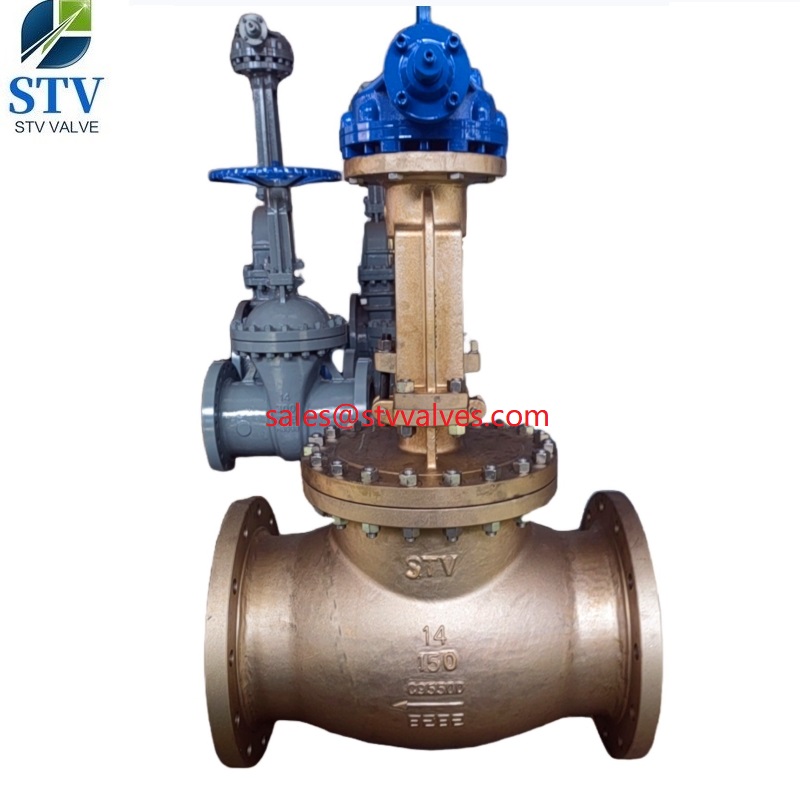

| Product Name | ASTM B148 C95500 Globe Valve,BS1878,14 Inch,150 LB,RF |
| 1. Material | C95500 |
| 2. Size | 14” |
| 4. Port | Full Port |
| 5. Working Pressure | 150lb |
| 6. Connection Ends | RF |
| 7. Working Temp. | -29~300ºC, |
| 8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| 9. Operated | Gear Box |
| 10. Inspection & Testing | According to API598 |
| Shipment | |
| Delivery Time | 30 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shipping | |
| Country of Origin | Wenzhou city, China |
| Production Capacity | 6000 ton/year |
| MOQ | 1 PCS/size |
