Description
Application:
Design&Manucture:API6D/ASME B16.34
Face to Face Dimension:ASME B16.10
End Flange Dimension:ASME B16.5
Butt Welded Dimension:ASME B16.25
Test&Inespection:API598
Specification:
Size:2-32″
Pressure:150-300lb
Material:C95800,C95400,C83600
Temperature:-29°C+260°C
Service:Sea Water
Gate Valve full port design OS&Y ,Outside screw and yoke,bolted bonnet.
Flexiable wedge, Fully guided
Choice of solid or split wedge
Renewable seat rings
Forged T-head stem
Rising stem and non-rising handwheel
Flanged or Butt welding ends
Available with BG operator.
ASTM B148 C95800 Corrosion resisting ,High Strength,Abrasive resistance.

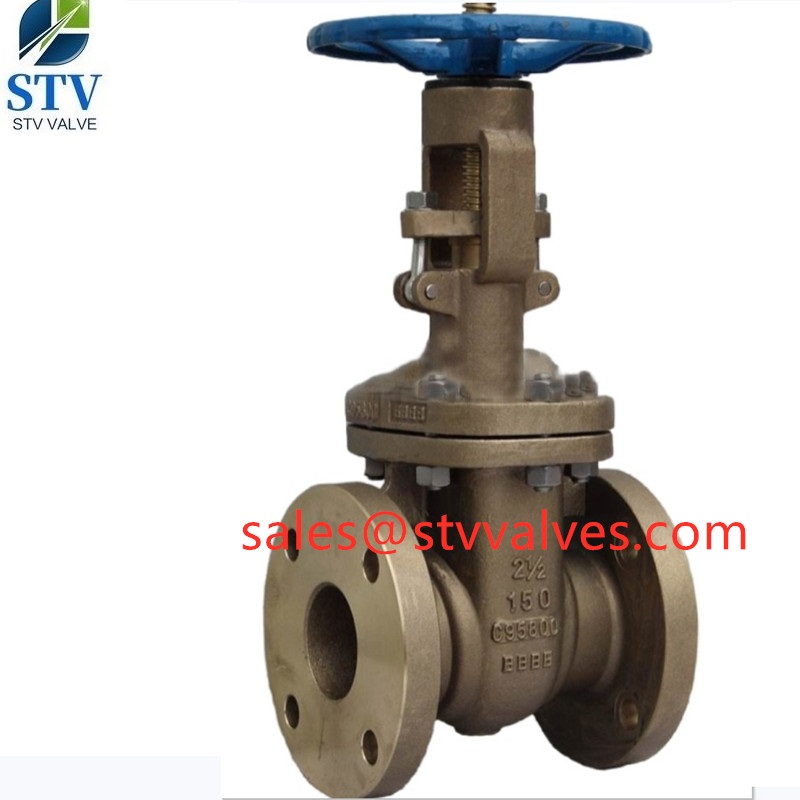

| Product Name: | ASTM B148 C95800 Gate Valve,21/2″,150 LB, FF End |
| 1.Material: | C95800 |
| 2.Size: | 21/2″ |
| 3.Port: | FULL |
| 4. Working Temperature: | -29 °C-260 °C |
| 5.Connetion End: | FF |
| 6.Working Pressure: | 150LB |
| 7.Suitable Medium: | Water, Natural Gas, Oil and some corrosive liquid |
| 8.Operated: | / |
| 9. Inspection & Testing | According to API 598 |
| Certificate: | ISO, CE/API 6D |
| Shipment | |
| Delivery Time | 30 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shipping | |
| Country of Origin | Wenzhou city, China |
| Production Capacity | 6000 ton/year |
| MOQ | 10 PCS/size |
