Description
Design and Manufacture: ANSI B16.34,BS1873
Face to face(end to end): ANSI B16.10
Flanged connection: to ASME B16.5, ASME B16.47 Series A, series B, MSS SP-4
Butt welded end: ANSI B16.25
Test and inspection: API598
Manufacturing to NACE MR-01-75 on request
Carbon Steel: A216 WCB,ASTM A105
Stainless Steel: A351 CF8(F304),CF8M(F316),CF3(F304L),CF3M(F316L),CF8C(F347),F321,F321H,CK20
Alloy Steel:Monel 400, Monel K500, alloy20,904L,CN7M, Inconel, Hastelloy® B&C, Titanium alloy
Duplex Stainless Steel:A351 CN7M(B473), CD4MCu(F50),CK3MCuN(F44),CG8M,
A890-1A,4A,5A,6A, A182 F44,F50,F51,F53,F310
Low temperature steel:A352 LCB,LCC,LCA,LC3,A350 LF2,LF3
High temperature steel:A217 WC6,WC9,WC5,WC11,C5,C12,C12A,A182 F22,F11 ,F5,F9,
Bronze, Nickel aluminum bronze(NAB),Gunmetal: B148 C95500,C95800,C95400,B62, C83600, C92200, B61, B150 C63200

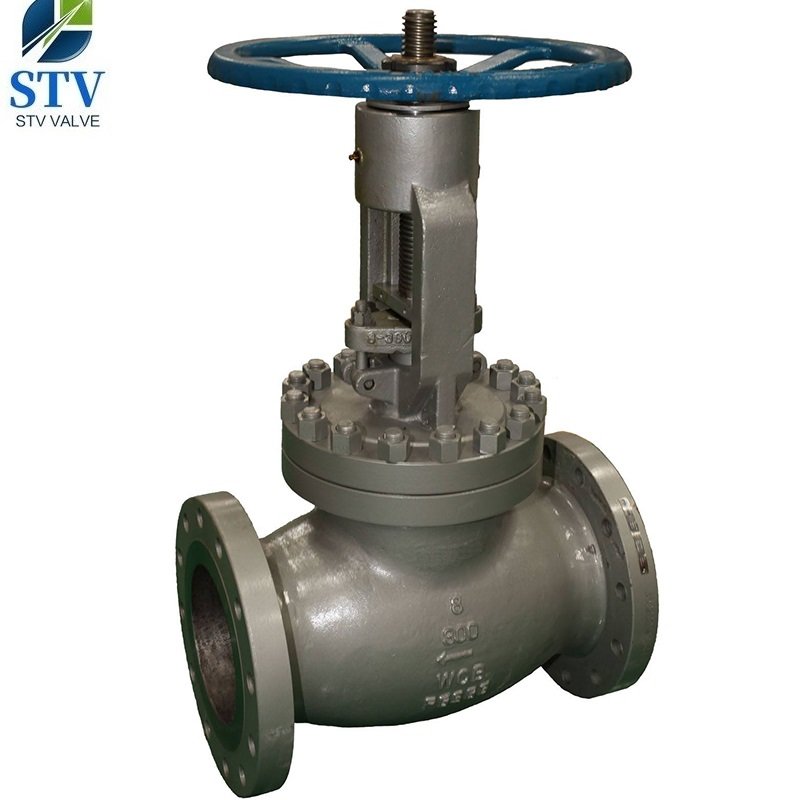

| Product Name | BS 1873 Globe Valve,300LB,WCB,8 Inch,Hand Wheel Op |
| 1. Material | WCB |
| 2. Size | 8” |
| 4. Port | Full Port |
| 5. Working Pressure | 300lb |
| 6. Connection Ends | RF |
| 7. Working Temp. | -29~425ºC, |
| 8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| 9. Operated | Handwheel |
| 10. Inspection & Testing | According to API598 |
| Shipment | |
| Delivery Time | 30 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shipping | |
| Country of Origin | Wenzhou city, China |
| Production Capacity | 6000 ton/year |
| MOQ | 1 PCS/size |
