Description
3 piece Forged floating Ball Valve
Features:
Size:1/2″-2″
Norminal Pressure:800-2500LB
FP. Full port design / RP. Regular Port / Reduced Port
Two piece / Split body, floating ball
Blow out proof stem
Flanged end, raised face
CAPI / ISO5211 Mounting pad
Level or worm gear
Specifications
Design & Manufacture Std.: API 608,API 607,API 6D,BS 5351
Face to Face Std.: API B16.10,API 6D,DIN 3202
End Connection Std.: NPT, BSP, BSPT, DIN259/2999
Test Standard: ISO5208,API 6D,BS 6755 ,API598
Body Material:A105, F304, F316
Seat: RPTFE,PPL,Nylon
Working Temperature:-40-180℃
Suitable:Water, Oil, Gas

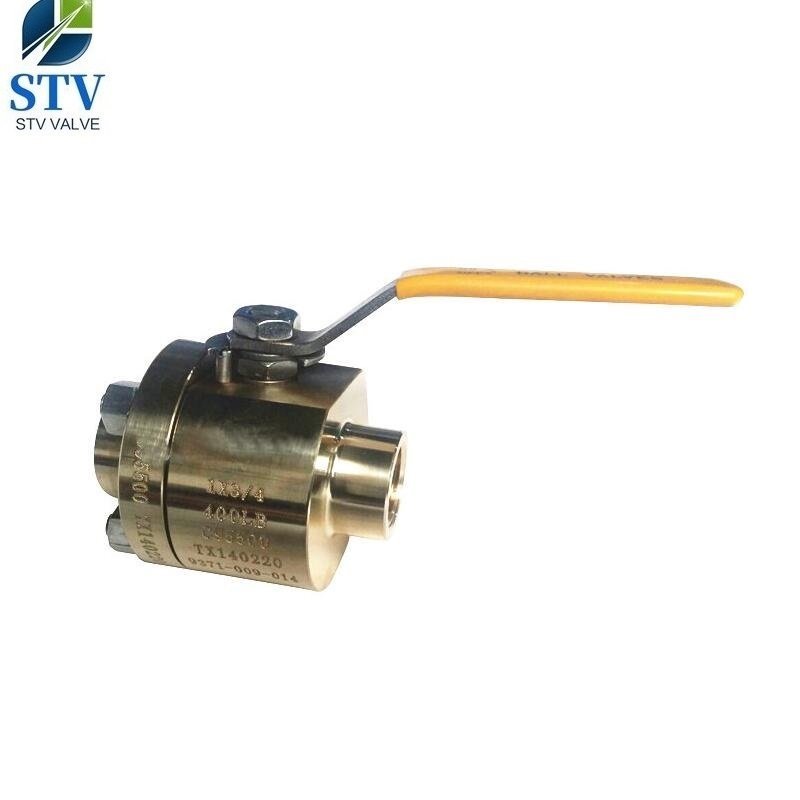

| Product Name | C95800 Forging Floating Ball Valve,800LB,DN25,NPT End |
| 1. Material | C95800 |
| 2. Size | 1” |
| 4. Port | Full Port |
| 5. Working Pressure | 800lb |
| 6. Connection Ends | NPT |
| 7. Working Temp. | -29~120ºC, |
| 8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| 9. Operated | Handwheel |
| 10. Inspection & Testing | According to API598 |
| Shipment | |
| Delivery Time | 30 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shipping | |
| Country of Origin | Wenzhou city, China |
| Production Capacity | 6000 ton/year |
| MOQ | 1 PCS/size |
