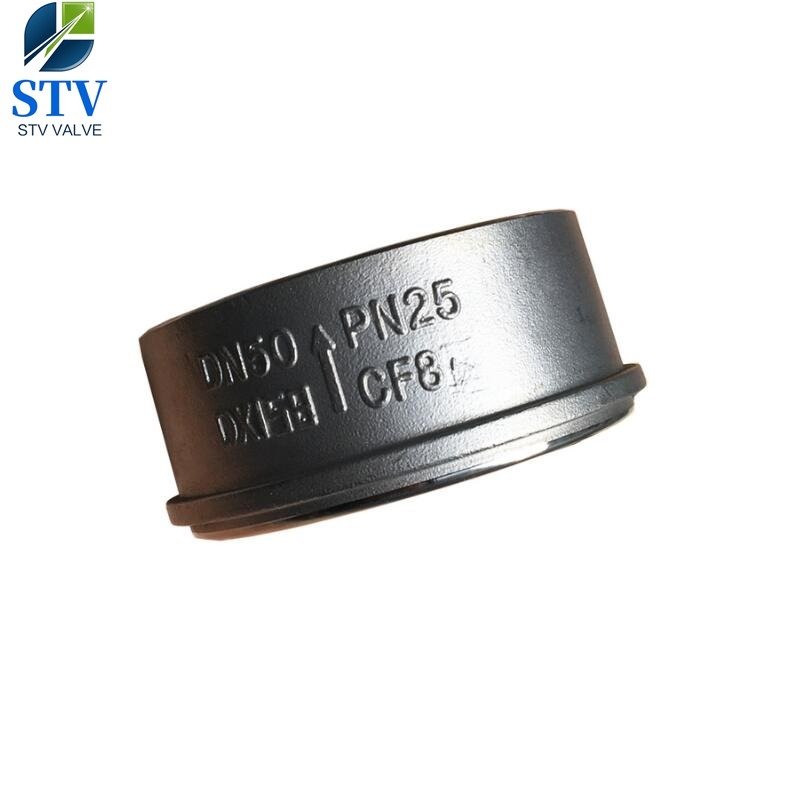

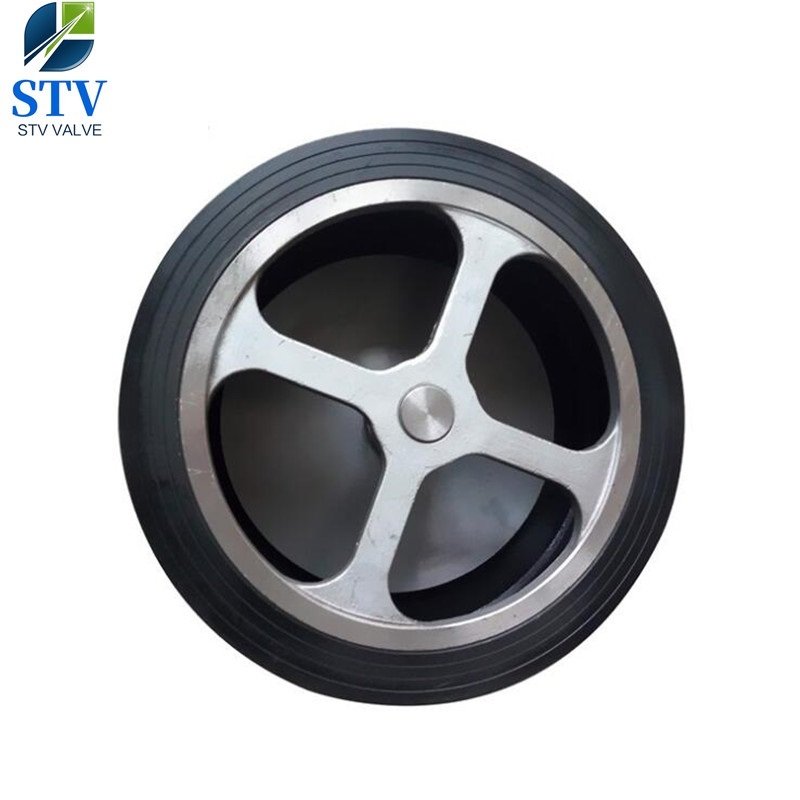

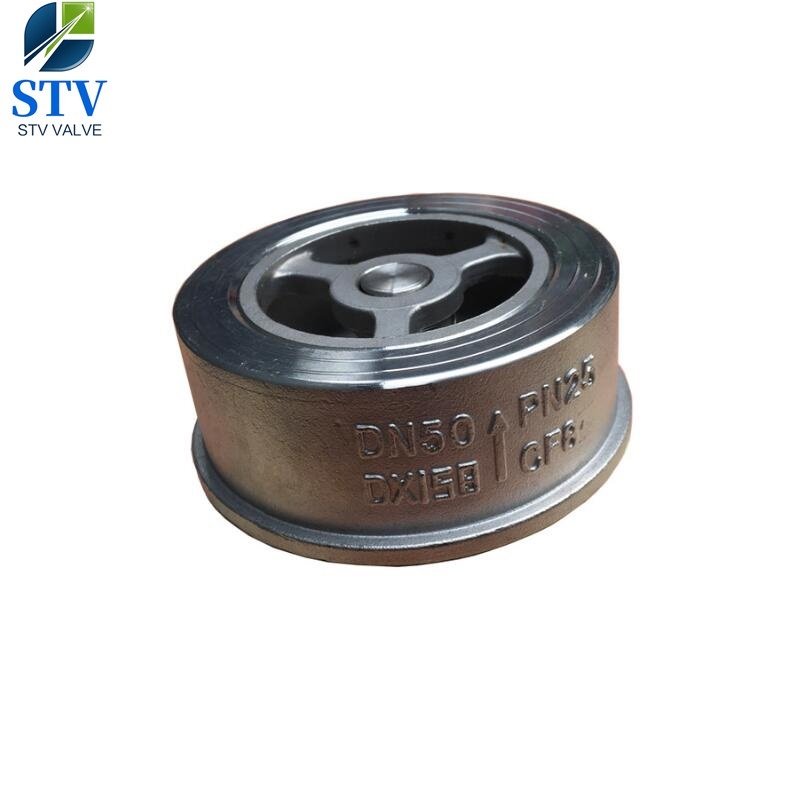

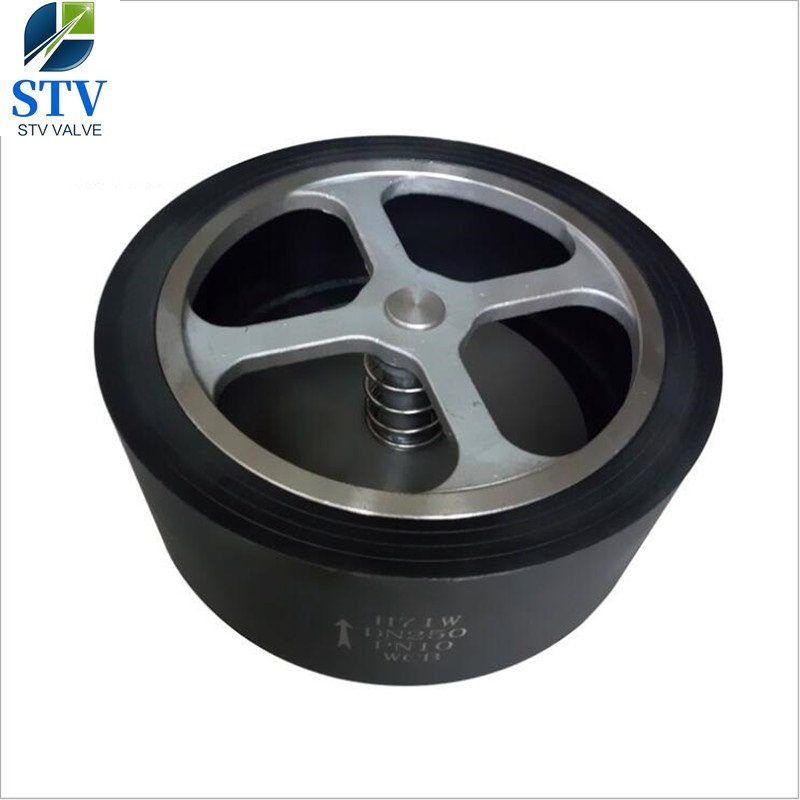

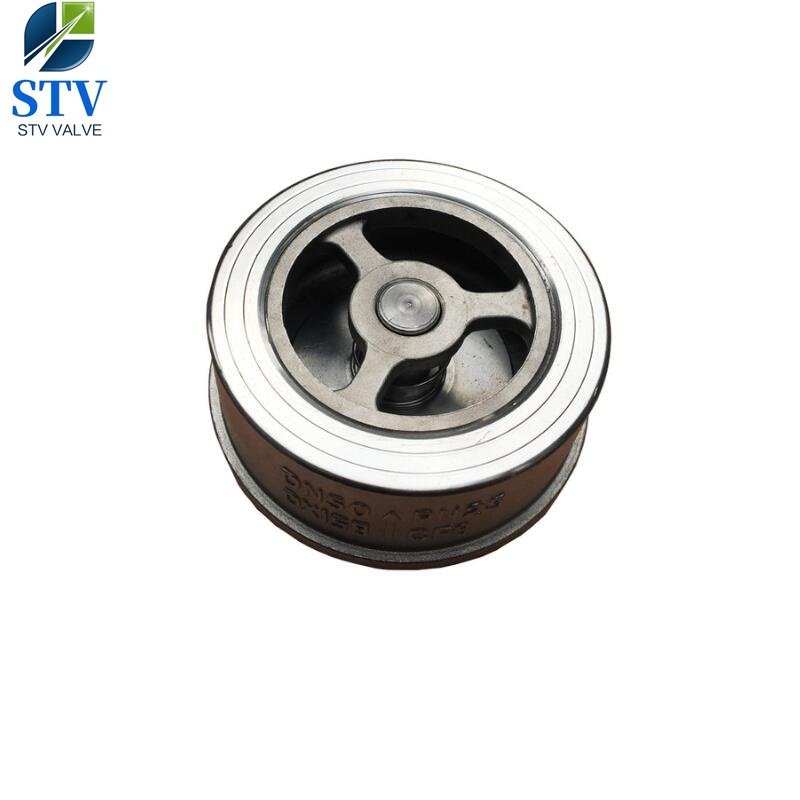

Our Stainless Steel Spring Disc Check Valve Wafer Pattern offers excellent sealing capabilities for both high and low pressures; general purpose, industrial and HVAC applications include water, heating, air-conditioning plants and compressed air systems. An economical, space saving spring loaded valve with Stainless Steel body and metal seal.
Installed either vertically (upwards only) or horizontally.
Wafer check valve (single disc)
Body valve, disc and spring:
stainless steel Aisi 316
Assembly between flanges:
DIN PN 10/40 and ANSI 150 lbs
Nominal working pressure: 40 bar (25 bar for
DN125, 150 and 200)
Min. 0,025 bar Max. 0,045 bar
Temperature range: 0°C to 200°C.
Installation: horizontal, vertical or inclined flow
STV Valve Technology Group Co., Ltd is a professional leader China Disc Check Valve,Dual Disc Check Valves,Spring Loaded Disc-type Check Valves,Stainless Steel Spring Disc Check Valve,Wafer disc check valves,Wafer Disc Check Valves Manufacturer from China,Wafer Pattern Stainless Steel Disc Check Valve,Wafer Style Disc Check Valves,Wafer Type Check Valves,Wafer type single disc lift check valve Manufacturer with high quality and competitive price.
Please contact our firstname.lastname@example.org for other materials and details.
