Description
Product range
-Valve size: 1/2″ – 10″ (DN15-DN250)
-Pressure: ANSI Class 150-1500 (PN16-PN250)
-Temperature: -196℃ – 500℃
-Body materials:A105N,F304,F304L,F316,F316L,F11,F22,F51,F55
Technical specifications
-Design: ASME 16.34/ API 6D
-Face to face: ASME B16.10
-BW end: ASME B16.25
-Test: API 598/BS 6755
-Fire safe test: API 607/API 6FA
-Special: NACE MR-01-75
Design features:
1-piece Body
-Forged or cast steel body
-Full port or Reduce port
-Anti-blowout Stem
-Gear Operation or Actuator Available
-Blow-out proof stem
-Fire safe design
Optional locking device
Optional ISO 5211 direct mounting pad

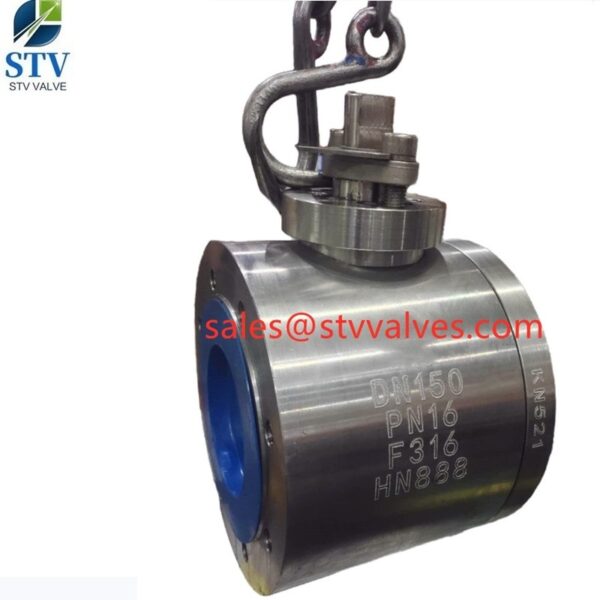

| Product Name | Wafer Type Ball Valve,F316,DN150,PN16 |
| 1. Material | F316 |
| 2. Size | 6” |
| 4. Port | Reducer Port |
| 5. Working Pressure | PN16 |
| 6. Connection Ends | RF |
| 7. Working Temp. | -29~280ºC, |
| 8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| 9. Operated | Handwheel |
| 10. Inspection & Testing | According to API598 |
| Shipment | |
| Delivery Time | 30 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shipping | |
| Country of Origin | Wenzhou city, China |
| Production Capacity | 6000 ton/year |
| MOQ | 1 PCS/size |
