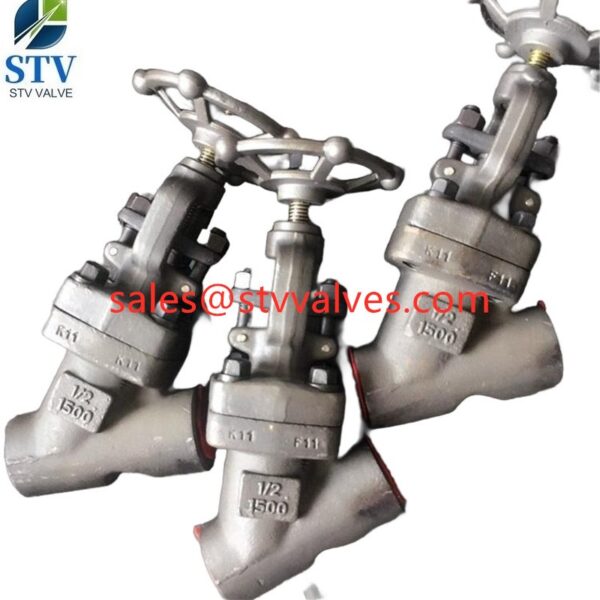

Y Type Forged Globe Valve,1500 Lb, F11, Sw Ends, 1/2 Inch

Model:STV-J65Y-F11-1/2″-800LB

Our Y Type Forged Globe Valve provide superior performance in various applications within chemical,
petrochemical, gas and various industrial use and ideal for downstream applications. They are designed,
engineered and manufactured in strict conformance to API, ASTM, ASME, ANSI and other recognized standards.
Our forged Steel Valves are not only cha racterized by outstanding performance, reliability and quality, they’re also known for their standard features normally optional in other brands.

STV Valve Technology Group Co., Ltd is a professional leader China Y Type Forged Globe Valve ,Class 1500Lb Y Type Globe Valve ,Forged Y Type Globe Valve,Class 1500 Lb Globe Valve, API 602 Y Type Globe Valve,Sw Ends Y Type Globe Valve,F11 Y Type Globe Valve,BB Y Type Globe Valve,1/2 Inch Y Type Globe Valve manufacturer with high quality and competitive price.

Description

Design Standard: API 602.
Body Material: F11
Nominal Diameter: 1/2 Inch (DN15).
Pressure: Class 1500.
End Connection: SW.
Face to Face: ASME B16.10.
Working Temperature: -29ºC~+560ºC.
Mode of Operation: Handwheel.
Test and Inspection: API 598.

Product Range
Body Material: A105,LF2,F5,F11,F22,304,304L,316,316L,F51,F91,20#,Inconel .Ect
Normal diameter: 1/2″~4″ (DN15~DN100).
End connection: NPT, SW, Butt-Weld, Flanged.
Pressure range: 150lbs~2500lbs(PN10~PN420).
Operation: Hand wheel, Electric,Pneumatic Actuator
Working temperature: -196ºC~ +560ºC.

Product Name	Y Type Forged Globe Valve,1500 Lb, F11, Sw Ends, 1/2 Inch
1. Material	F11
2. Size	1/2”
4. Port	Reducer Port
5. Working Pressure	1500lb
6. Connection Ends	SW
7. Working Temp.	-29~520ºC,
8. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
9. Operated	Handwheel
10. Inspection & Testing	According to API598
Shipment
Delivery Time	30 Days
Package	Standard Exporting Plywood Case
Shipping Port	Ningbo/Shanghai, China
Shipping Terms	Exw, FOB, CFR, CIF, etc.
Payment Terms	T/T, Western Union, PayPal, etc.
	30% prepayment, 70% balance paid before shipping
Country of Origin	Wenzhou city, China
Production Capacity	6000 ton/year
MOQ	1 PCS/size
