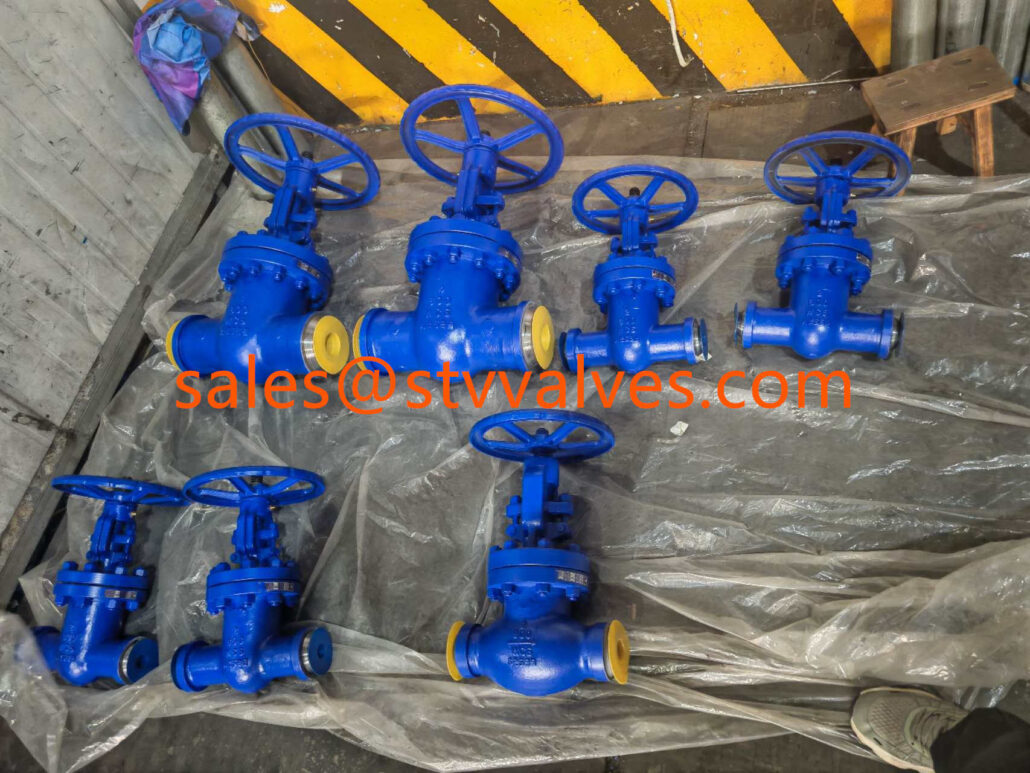

Astm A217 Wc6 Gate Valves
Standard: Astm A217 Wc6 Gate Valves
Design: OS&Y, BB, Rising Stem, Flexible Wedge, Full Bore
Ends Connection:BW Ends as per ASME B16.25
Face-to-Face Dimension:ASME B16.10
Materials
Body/Cover: ASTM A217 WC6
Trim: 5# – fully Stellite (STL)
Packing: Graphite
Gasket: F304 RTJ Ring
Specification
Size/Rating: 600LB 3″,4″,6″
Medium: Super high temperature steam, max. 5.9 MPa at +520°C
If you are interested in the above valve, please feel free to contact us via email: sales@stvvalves.com
