Description
Key features:
Screwed BSP or NPT End Connections
CF8M Stainless Steel
PTFE Seat
Sizes: 1/4″ to 4″
Temperature range: -20 °C to +180 °C
Operating pressure: 1000 WOG
Movement: 90° turn

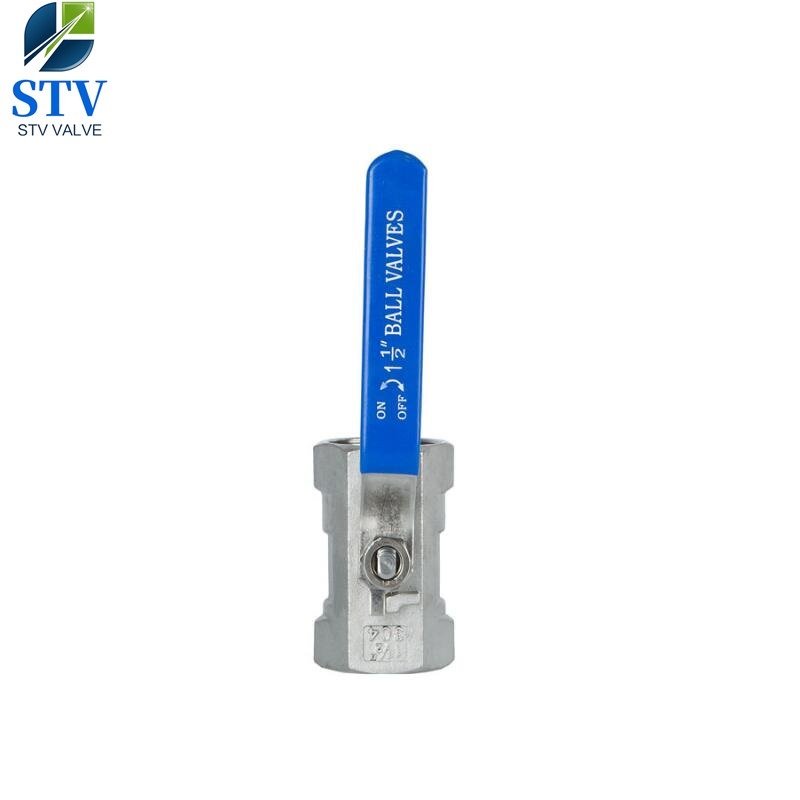

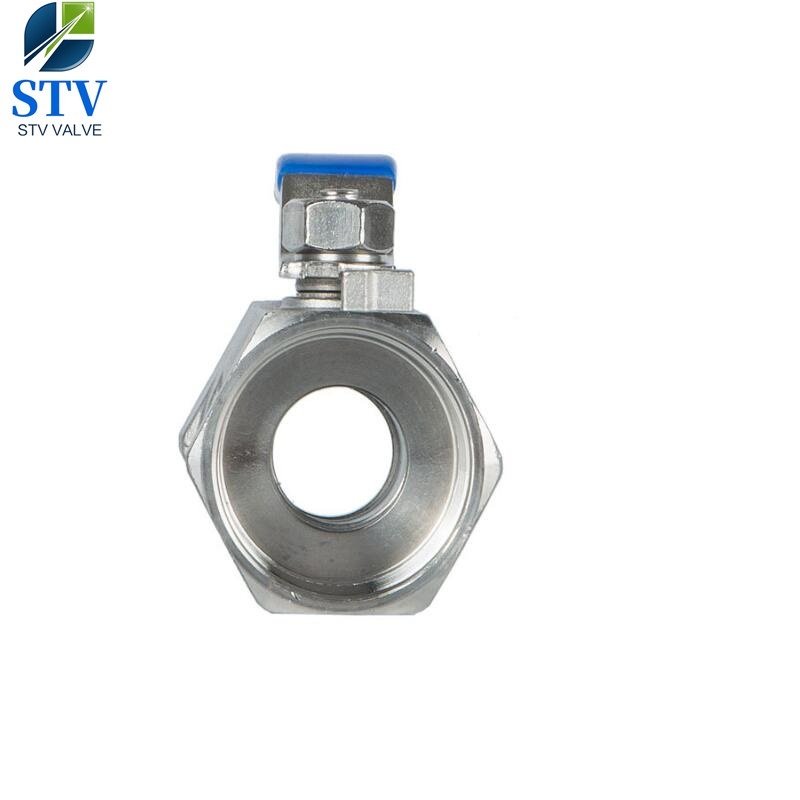

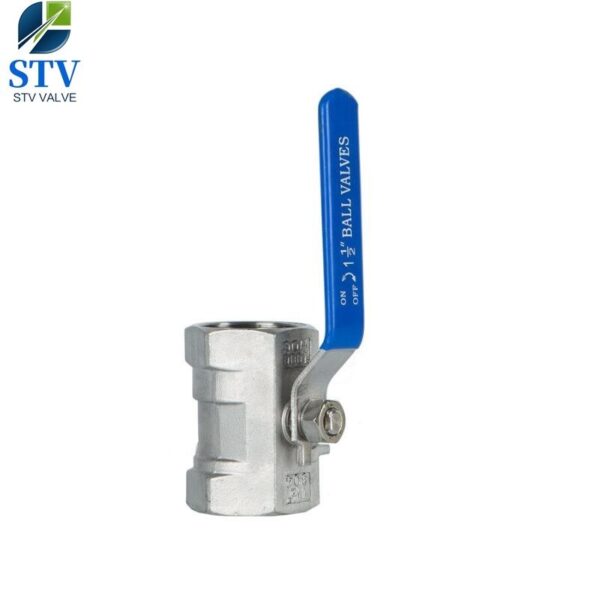

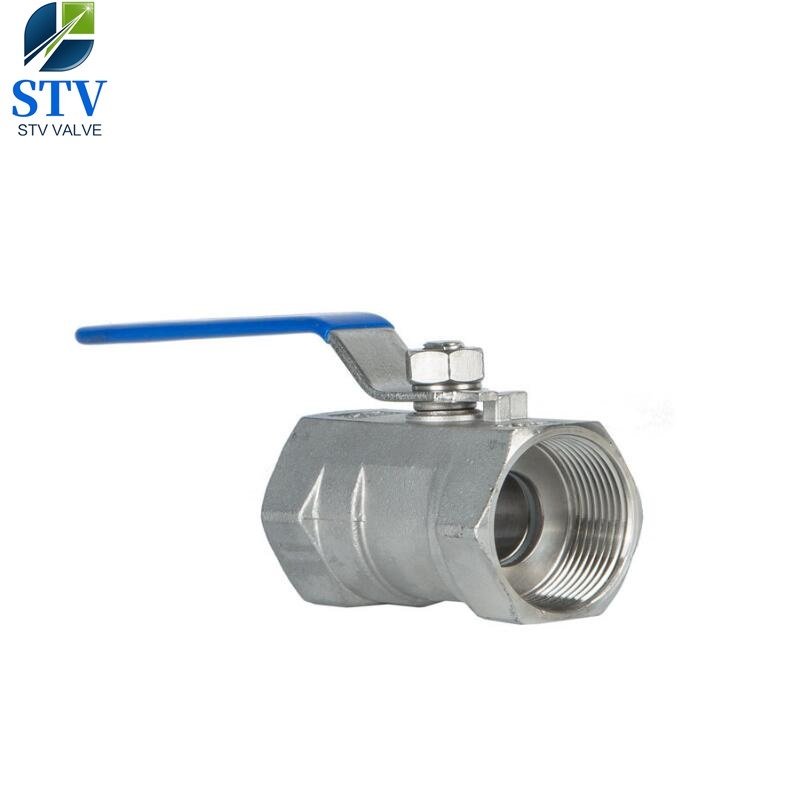

| Product Name | 1PC Ball Valve,Reducer Port,CF8 Body,Lever Operated |
| 1. Material | CF8 |
| 2. Size | 2” |
| 4. Port | Full Port |
| 5. Working Pressure | 1000WOG |
| 6. Connection Ends | NPT |
| 7. Working Temp. | -29~120ºC, |
| 8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| 9. Operated | Handwheel |
| 10. Inspection & Testing | According to API598 |
| Shipment | |
| Delivery Time | 30 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shipping | |
| Country of Origin | Wenzhou city, China |
| Production Capacity | 6000 ton/year |
| MOQ | 1 PCS/size |
