3-piece sanitary ball valve with ISO direct mounting pad is designed for food biological, pharmaceutics or similar industries. The cavity filled seat option will help not to remain the media in the body cavity to keep from spoiling or mixing. Cavity filler seats will also help to clean the valve port easily.
The options on end types can be T-Clamp, Tube weld end, Extended tube weld end. Different material of soft kits will be applicable for different working circumstance.
ASME/ BPE (for SS316L) standard are available on 302SD, with low ferrite, and low sulphur (0.005 to 0.017). The finish are available for Ra 40 uin or Ra 25 u-in.
The standard bare stem type is well designed for mounting actuator directly.
Stv offer pneumatic/ electric actuator and limit switch box/ solenoid valve/ modulating controller….assembling without further charge.
Design and features
Body & end caps quality investment casting
with ISO 5211 direct mounting pad
Adjustable stem packing
Available in stainless steel or carbon steel
Blow-out proof stem design
100 air tested under water at 80-100 psi

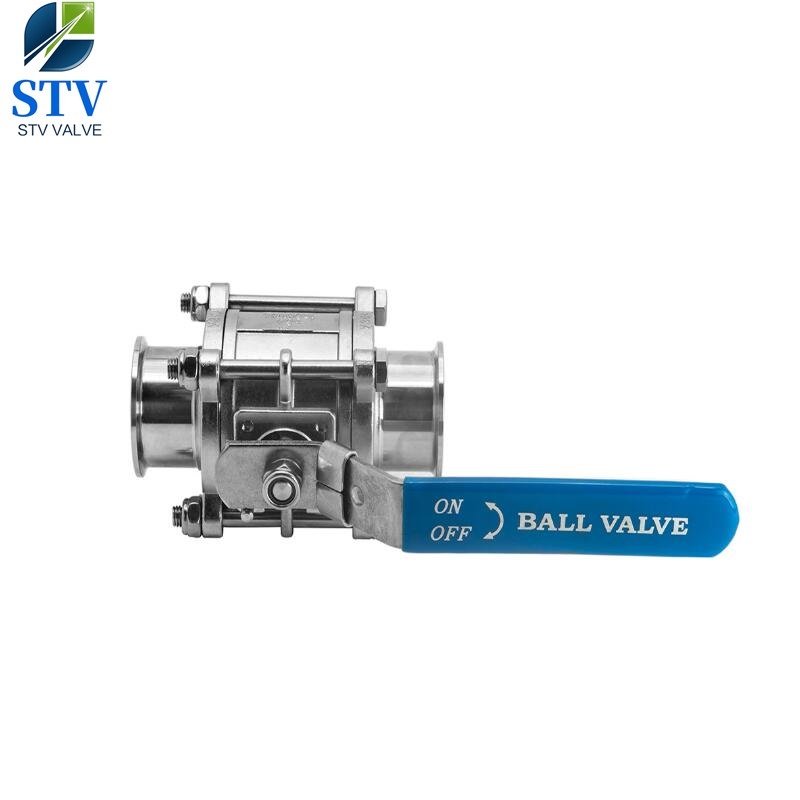

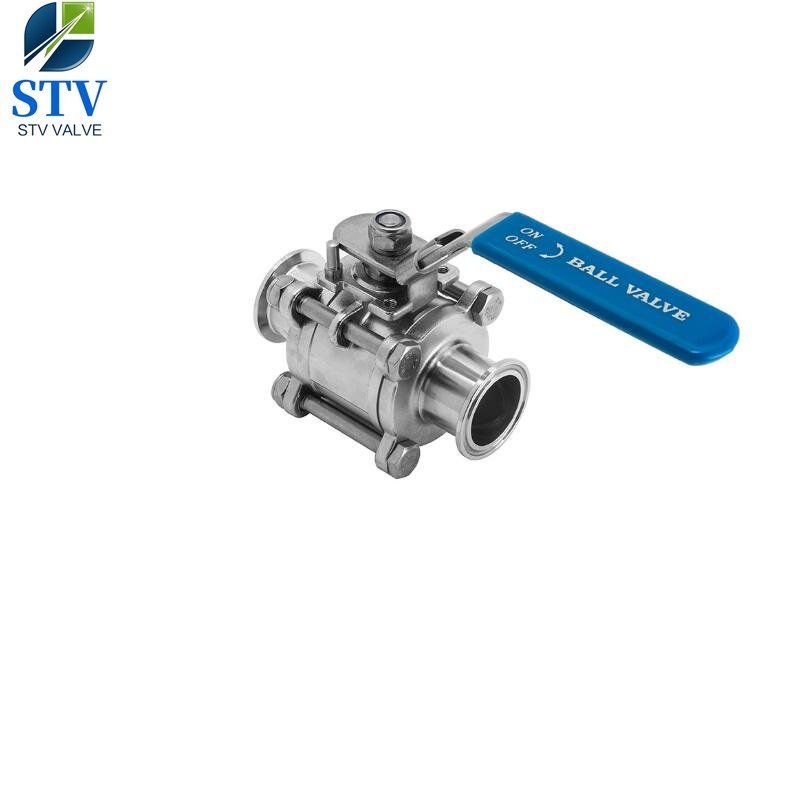

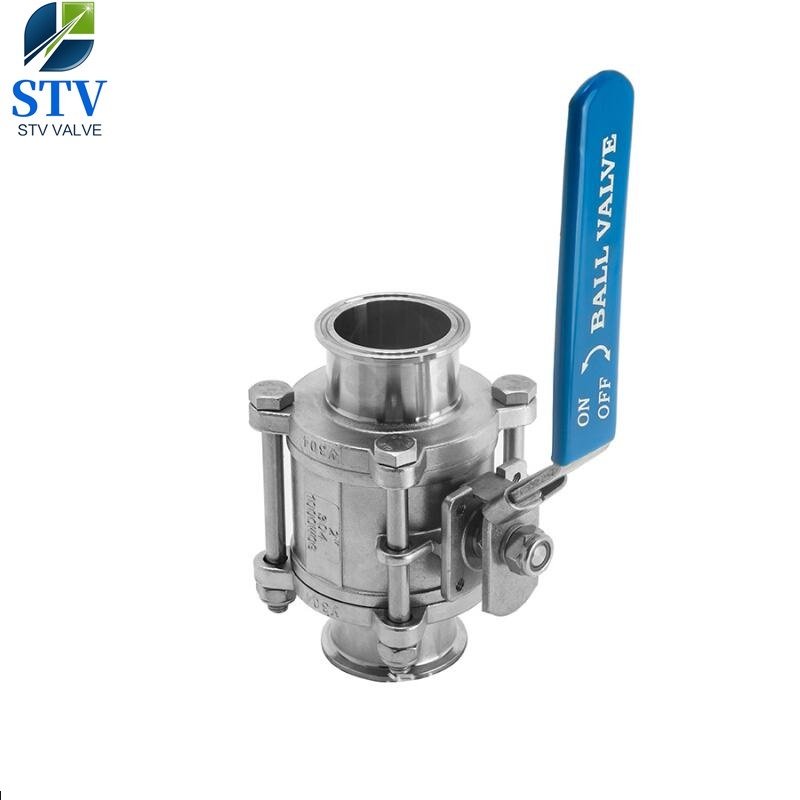

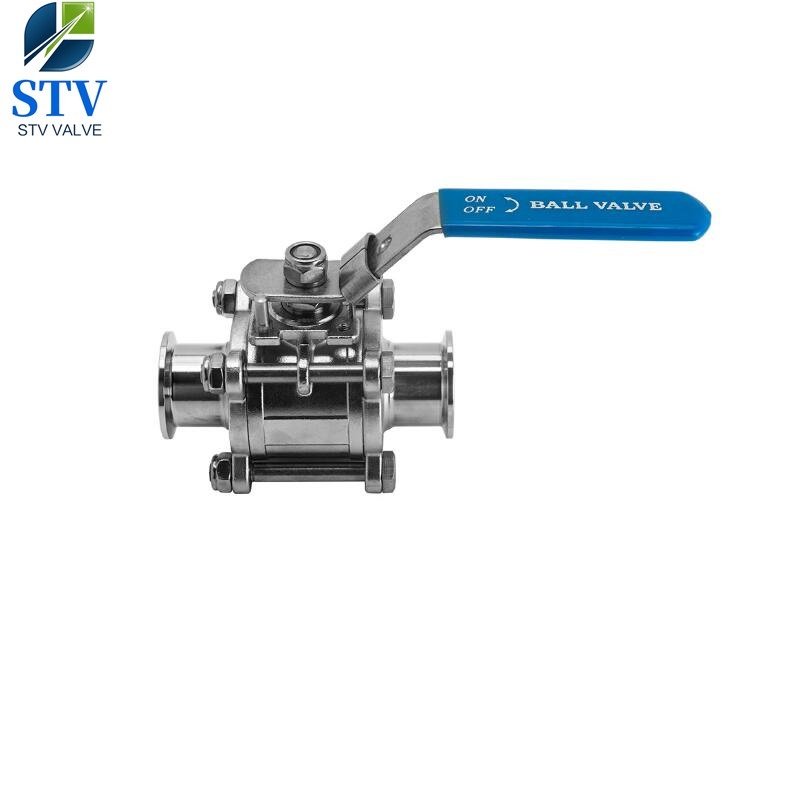

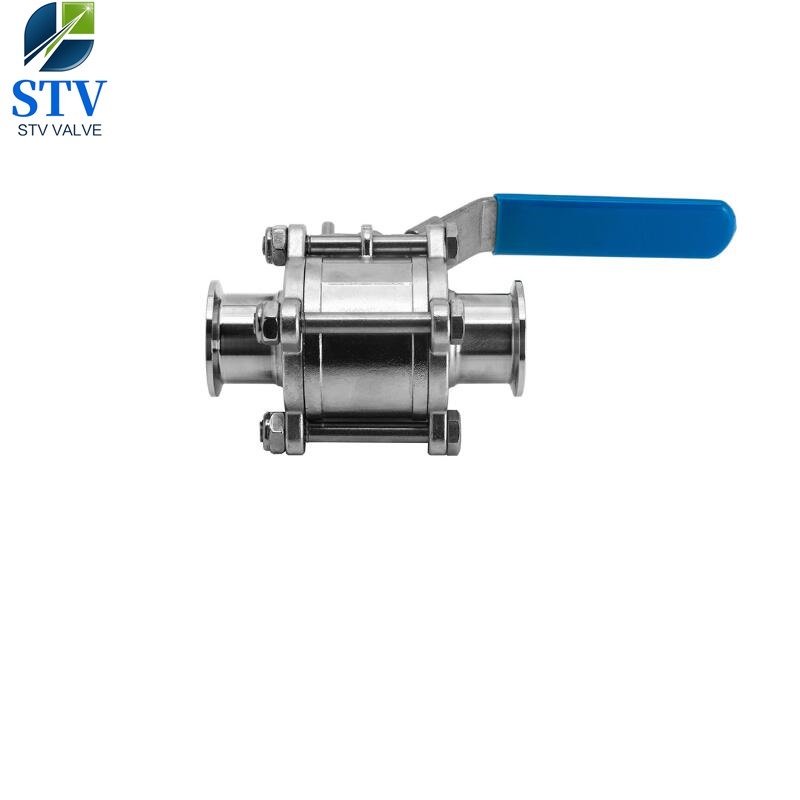

3 Piece Stainless Steel Sanitary Ball Valve
