Description

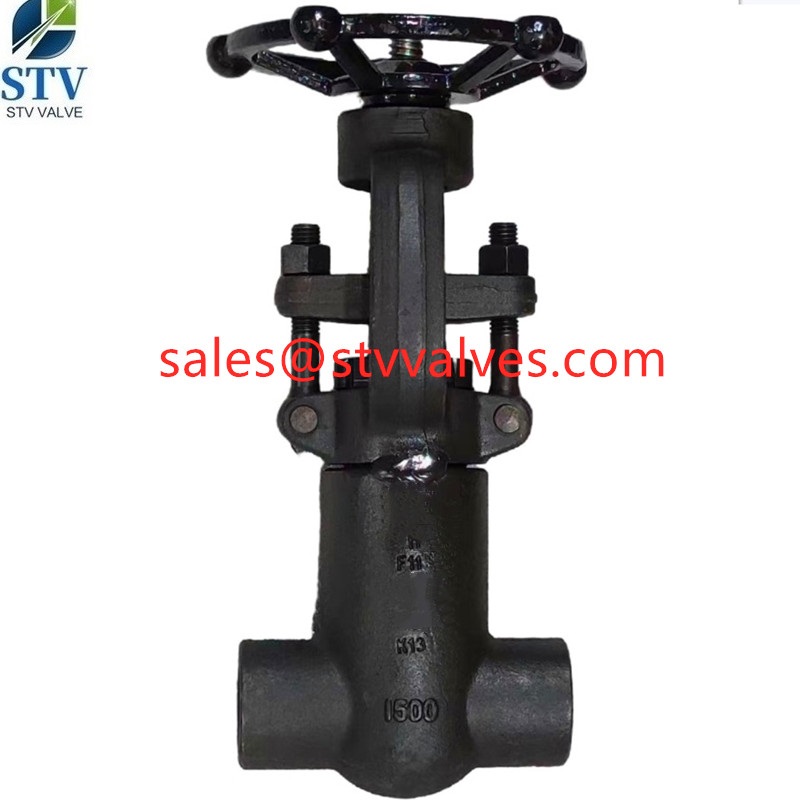

Name: A182 F11 Gate Valve ,1 Inch,1500LB,NPT End
Design: API 602
Body: F11
Nominal Size: 1 Inch
Nominal Class: 1500 LB
End Connection: NPT Ends
Face to Face: Manufacture
Test and Inspection: API 598
Technical Parameters and Characteristics
Product: Small Size Gate Valve
Nominal Diameter: 1/4 Inch – 4 Inch
Design Temp.: -196℃ – 573℃
Design Pressure: Class 150 LB – Class 4500 LB
Material: Carbon Steel, Stainless Steel, Alloy Steel, Bronze
Design Standard: API 602, BS 5352
Face to Face: Manufacture Standard, ASME B16.10
Connection End: NPT, SW, BW, Flanged
Test Standard: API 598, ISO 5208
Operation: Handwheel
Application: Power Station, Petroleum, Chemical Engineering
| Product Name | A182 F11 Gate Valve ,1 Inch,1500LB,NPT End |
| 1. Material | F11 |
| 2. Size | 1” |
| 4. Port | Reducer Port |
| 5. Working Pressure | 1500LB |
| 6. Connection Ends | NPT End |
| 7. Working Temp. | -29~520ºC, |
| 8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| 9. Operated | Handwheel |
| 10. Inspection & Testing | According toAPI 598 |
| Shipment | |
| Delivery Time | 30 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shipping | |
| Country of Origin | Wenzhou city, China |
| Production Capacity | 6000 ton/year |
| MOQ | 10 PCS/size |
