Description
Design and Manufacture： BS 1868,ASME B16.34,API 6D
Inspection and Test：API598,API600 or API 6D
End Flange Dimension：ASME B16.5(for NPS≤24,ASME B 16.47 series B,API 605,ASME B16.47 A Series,MSS SP-44(for NPS＞24)
BW end Dimension：ASME B16.25
Face to Face and End to End：ASME B16.10
Pressure-temperature ratings：ASME B16.34
Wall Thickness Dimension：API 600,BS 1868
Product Range
Body material: carbon steel, stainless steel, alloy steel,bronze
Nominal diameter:1/2″~48″(DN15~DN1200)
End Connection: RF,RTJ, BW
Pressure range: Class150~2500(PN16~PN420)
Working temperature:-196℃~+560℃

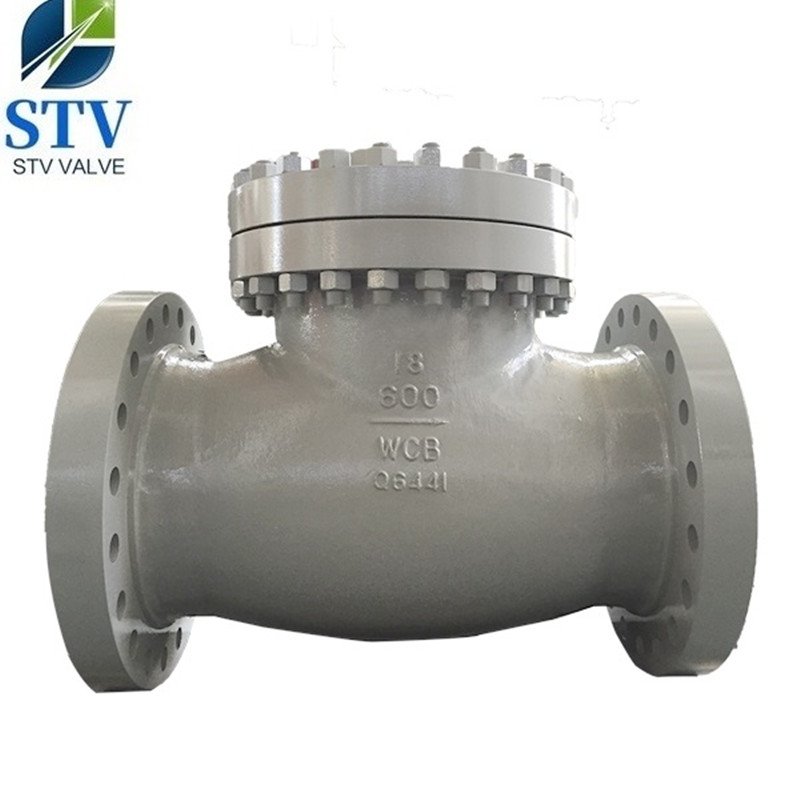

| Product Name: | BS 1868 Cast Steel Check Valve, WCB, API 6D, 18IN, 600 LB, RF |
| Valve Body Material: | WCB |
| Port | Full Port |
| Mex working pressure: | 600LB |
| Max. Working Temperature: | -29-425°C |
| Availably size: | DN50-DN1000 |
| Availably connection: | RF, BW,RTJ |
| Availably standard: | ANSI |
| Operated: | / |
| Certificate: | ISO, API600,API 6D |
| Suitable Medium: | Water, Steam, Oil and natural gas etc. |
