Body and Bonnet:CF8(304)CF8M(316)
Pneumatic actuator ball valve Stem:304 or316
Sealing and Packing:PTFE
Pneumatic actuator ball valve are greatly used in
Beer& Drink Filling Machinery
Textile printing& Dyeing
Pharmacy& Medical Equipment
Full conformance to the specifications of: ISO5211, DIN3337.
The extruded high strength aluminum bodies are precision honed and hard anodized yielding an internal bore surface that can provide low coefficient of friction, smooth performance and a long service life.
All acting surfaces are fitted with high quality bearings, resulting in low friction, quite and high cycle life.
The two independent external travel stop adjustment bolts can easily and precisely adjust up to ±5º at both open and closed directions.
Multifunction position indicator with NAMUR standard is convenient for mounting accessories.
Pre-compressed load springs are convenient for safe mounting and disassemble operations.
Die-casted aluminum pistons and end caps are high strength and light weight.
Optional Viton and Silicone seals are available for low and high temperature applications.

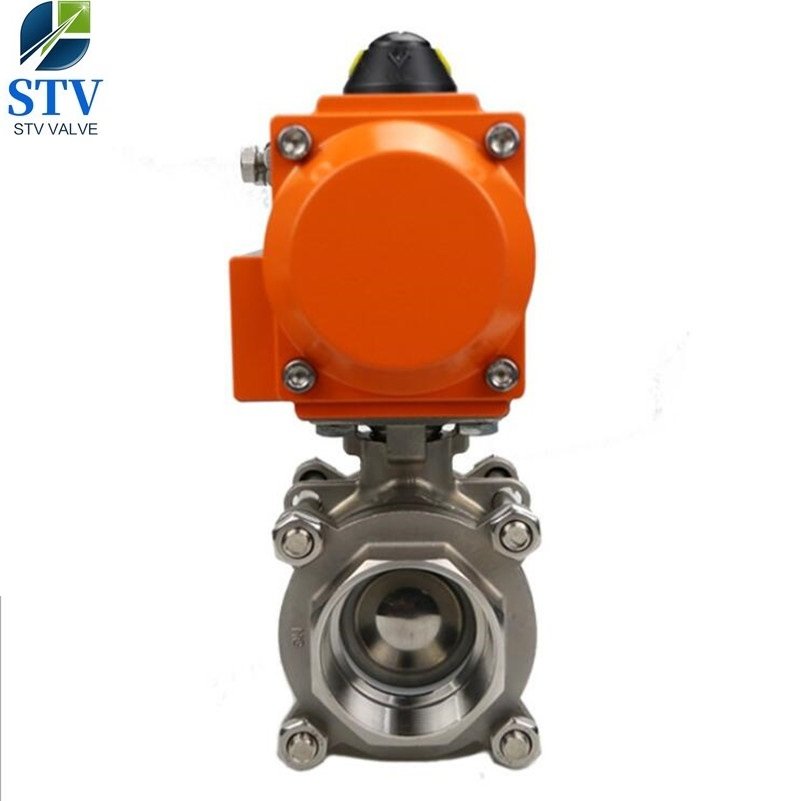

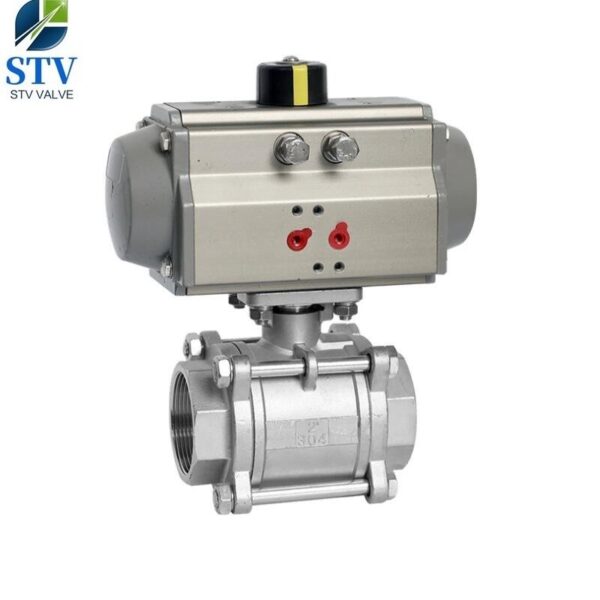

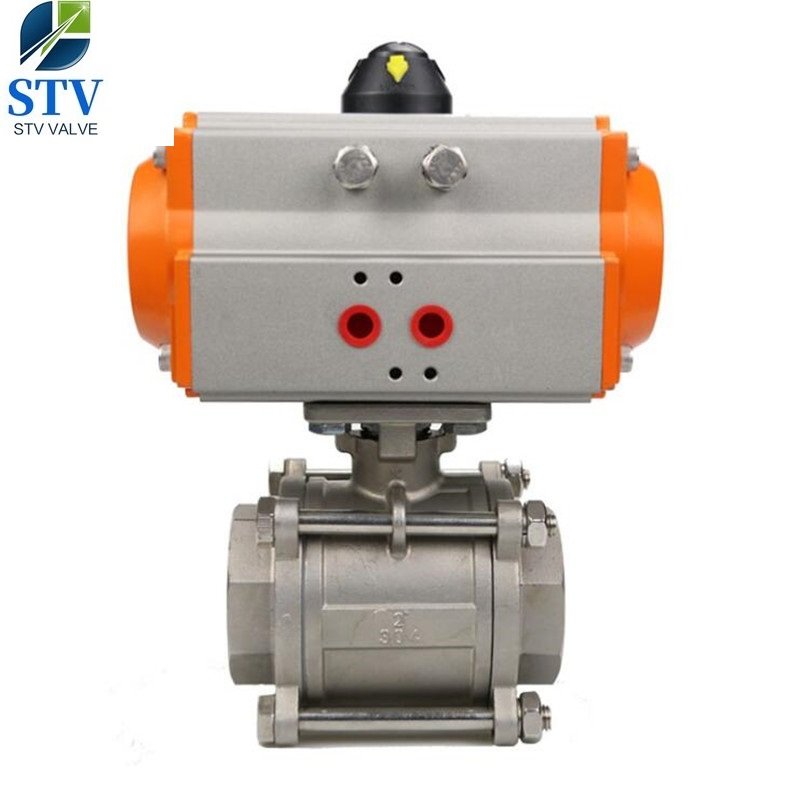

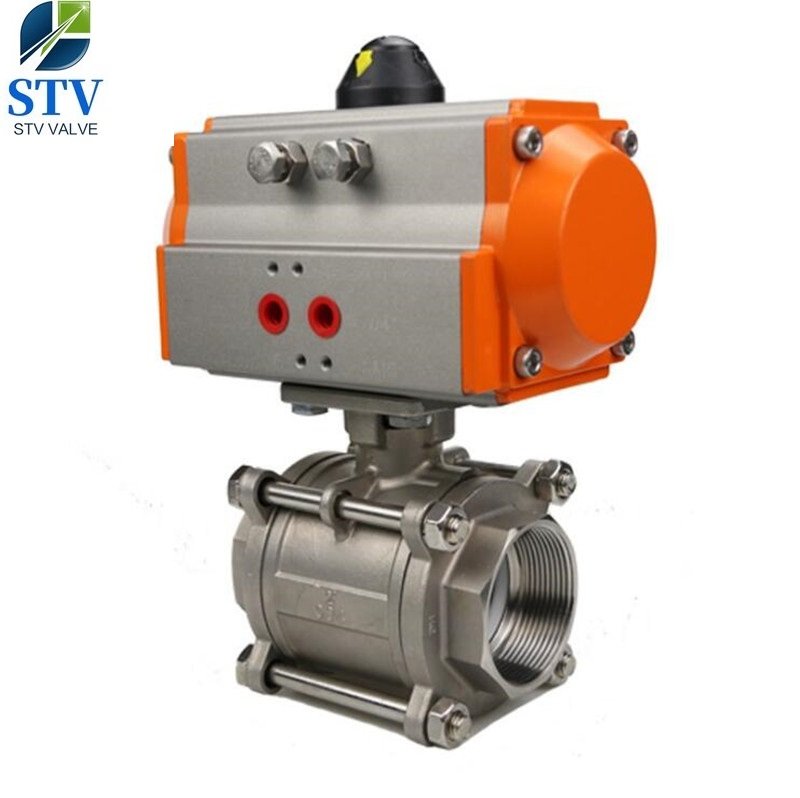

|Product Name||Pneumatic Actuated Ball Valve,3PC Body,SS304,NPT End|
|4. Port||Full Port|
|5. Working Pressure||1000WOG|
|6. Connection Ends||NPT|
|7. Working Temp.||-29~120ºC,|
|8. Suitable Medium||Water, Natural Gas, Oil and some corrosive liquid|
|10. Inspection & Testing||According to API598|
|Delivery Time||30 Days|
|Package||Standard Exporting Plywood Case|
|Shipping Port||Ningbo/Shanghai, China|
|Shipping Terms||Exw, FOB, CFR, CIF, etc.|
|Payment Terms||T/T, Western Union, PayPal, etc.|
|30% prepayment, 70% balance paid before shipping|
|Country of Origin||Wenzhou city, China|
|Production Capacity||6000 ton/year|
