STV Tilting Disc Check Valve Performance Compared to Industry Alternatives
The STV tilting disc check valve is better in some ways than other check valves. Studies show its tilted disc helps fluids move smoothly and close quickly. This means there is less pressure drop and it stops backflow well. This valve works well with many fluids, like liquids and gases. It is a good choice for tough jobs in factories. The table below shows the main differences:
| Feature | Tilting Disc Check Valve | Common Check Valve |
|---|---|---|
| Structural Design | Inclined disc allows smooth flow and quick closure | Utilizes discs or spheres that close automatically |
| Working Principle | Operates using fluid momentum to open and close | Closes in response to reverse flow |
| Scope of Application | Suitable for liquids, gases, and steam in various industries | Suitable for various media but may have limitations |
| Operating Mode | Can be operated manually or automatically | Usually operated manually, some with automatic control |
Engineers can use this chart to pick the best valve for their needs.
Key Takeaways
- The STV tilting disc check valve lets fluid move easily and closes fast. This helps lower pressure drop and stops backflow well.
- Engineers can put the small tilting disc check valve in small spaces. This makes it useful for many jobs like water treatment and oil pipes.
- This valve uses strong CF8M stainless steel. It works well for a long time, even in tough places.
- Picking the right check valve, like the STV tilting disc, can help save time and money. It does this by needing less fixing and care.
- STV Valve Technology Group Co., Ltd makes good valves that follow strict rules. This gives engineers choices they can trust for their work.
Tilting Disc Check Valve Overview
Design Features
A tilting disc check valve has a disc on a pivot. The disc tilts open when fluid moves forward. It closes fast if the flow goes backward. This design helps liquids and gases move easily. It lowers pressure loss and stops backflow. The STV 150LB tilting disc check valve is strong. Its CF8M stainless steel body fights rust well. The valve is 24 inches wide and has a wafer-type shape. It fits big pipes and small spaces. It works well with pressure up to 150lb. It can handle temperatures from -29°C to 300°C. STV Valve Technology Group Co., Ltd makes this valve. The valve meets ASME B16.34 and API594 rules. This means it is high quality and works the same every time. The company gives wafer and wafer lug ends. This makes it easy to install.
STV Valve Technology Group Co., Ltd is known for making 150LB tilting disc check valves. They also make CF8M tilting disc check valves, 24 inch tilting disc check valves, and wafer tilting disc check valves. Their products are good quality and not too expensive. Many people trust them for big projects.
Typical Uses
Engineers use the tilting disc check valve in many jobs. It lets fluid go one way and stops it from going back. This valve works with water, oil, natural gas, and some harsh fluids. It reacts fast and does not waste much pressure. This makes it good for tough systems.
| Application Area | Description |
|---|---|
| Water Treatment Facilities | Used for low-pressure loss and quick response to backflow. |
| Oil and Gas Pipelines | Essential for preventing backflow in high-pressure systems. |
| Petrochemical Industries | Helps maintain one-way flow and system integrity. |
| Power Plants | Critical for boiler feedwater systems to prevent backflow. |
- People put these valves in places like:
- Pump outlets
- Piping systems
- Boiler feedwater systems
The tilting disc check valve helps keep these places safe and working well. That is why many factories use it.
Check Valve Types
Knowing about the main check valve types helps engineers pick the right one. Each type stops backflow in its own way. Here are three common types used in factories.
Swing
A swing check valve has a disc on a hinge. When fluid moves forward, the disc swings open. If the flow goes backward, the disc swings shut. This valve can slam hard when closing. It can cause more pressure loss and needs more fixing. Swing check valves work best in pipes that go sideways and have steady flow.
- The disc hangs on a hinge.
- The valve shuts if flow goes backward.
- Closing can make a loud slam.
Note: Swing check valves are easy to use and common, but they might not work well if flow changes quickly.
Lift
A lift check valve has a disc that moves up and down. When fluid pushes up, the disc lifts and lets flow through. If pressure drops or goes backward, the disc falls down and closes. This valve seals tight and is good for high pressure. Lift check valves are often used in up-and-down pipes where space is small.
- The disc moves straight up to open.
- Gravity or backward flow shuts the valve.
- Good for high pressure and clean fluids.
Dual-Plate
A dual-plate check valve has two plates with springs. The plates turn on a hinge in the middle. When fluid moves forward, the plates swing open. If flow slows or goes backward, the springs help close the plates fast. This valve does not slam much and loses less pressure. It is small and light, so it fits in tight spots and big pipes.
- Two plates turn on a middle hinge.
- Springs help close the plates fast.
- Less slamming and pressure loss than swing check valves.
Engineers like dual-plate check valves because they are small and work well in tough places.
Each check valve type has its own good points for different jobs. Picking the right valve helps systems work well and last longer.
Performance Comparison
Flow and Pressure Drop
Flow efficiency and pressure drop matter when picking a check valve. The tilting disc check valve from STV Valve Technology Group Co., Ltd has a special disc shape. This shape lets fluid move easily through the valve. The disc tilts open with the flow and shuts fast if the flow goes backward. This helps lower turbulence and keeps the pressure drop at a medium level.
The table below shows how each check valve type handles pressure drop:
| Valve Type | Pressure Drop Comparison |
|---|---|
| Tilting Disc Check Valve | Medium pressure drop, less than lift check valves but a bit more than swing check valves. |
| Swing Check Valve | Lower pressure drop because the flow path is smooth. |
| Lift Check Valve | Higher pressure drop than swing and tilting disc check valves. |
Swing check valves have less pressure drop since their disc swings away, making a clear path for fluid. Lift check valves have more pressure drop because the disc moves up and down, which can slow things down. The tilting disc check valve is in the middle. It lets fluid move better than lift check valves and is almost as good as swing check valves. This makes it a good pick for systems that need good flow and to stop backflow.
Sealing and Reliability
Sealing and reliability are very important for check valves. The tilting disc check valve from STV uses a pre-loaded gasket and the pressure from the fluid to make a tight seal. This design helps stop leaks and keeps the system safe. The valve closes fast if the flow goes backward, which stops backflow and water hammer.
STV makes its tilting disc check valve to meet ASME B16.34 and API594 rules. These rules make sure the valve works well when pressure or temperature changes. The strong build lets the valve work in tough places, like where it is hot or the fluid can cause rust.
Other check valves also seal well, but the tilting disc check valve is special because it closes fast and shuts off well. Swing check valves might close slower, so some backflow can happen. Lift check valves seal tight but may not close as fast if the flow changes. Dual-plate check valves use springs to help close quickly, but how well they seal depends on the springs and how the plates line up.
Maintenance and Durability
Maintenance and durability are important for how long a check valve lasts. The tilting disc check valve from STV has a simple design with fewer moving parts. This means less wear and easier maintenance. The CF8M stainless steel body does not rust easily, so the valve lasts longer even in hard jobs.
STV checks every valve using API598 rules. This makes sure each valve is high quality before leaving the factory. The strong build and good materials mean the valve can be used a lot and with tough fluids without breaking.
Swing check valves might need more fixing because the disc can slam shut and wear out. Lift check valves have more moving parts, so they might need more repairs. Dual-plate check valves are small and strong, but their springs might need to be changed after a long time.
Tip: Picking a check valve that is strong and easy to fix can help save time and money over the years.
The tilting disc check valve from STV Valve Technology Group Co., Ltd has a low pressure drop, seals well, and is built strong. These things make it a good and trusted choice for many factory jobs.
Selection Factors
24 Inch Tilting Disc Check Valve
Installation and Space
Engineers sometimes have trouble with space when installing valves. The STV tilting disc check valve is small and fits between two flanges. This makes it good for places with little room or big pipes. The wafer and wafer lug ends let the valve fit different pipe setups. The small body means you do not need extra pipe length. It is easy to install, even in tight spots. You can put the valve sideways or up and down. Other check valves are bigger and need more space. Some have complicated parts that take up room. The tilting disc check valve saves space and makes installation easier.
- The small size helps save space.
- It is simple to put in crowded areas.
- You can mount it in different ways.
Tip: Picking a valve that saves space can lower costs and make fixing it easier later.
Cost and Value
Cost is important when choosing a check valve. The STV tilting disc check valve gives good value because it is strong and works well. Its CF8M stainless steel body does not rust easily. This helps the valve last longer and means you do not have to replace it often. When thinking about cost, look at the price and how much you save over time. The valve has fewer moving parts, so it wears out less and needs fewer repairs. Less fixing means less stopping work. The valve seals well, so leaks and problems happen less. It can be used with water, oil, gas, and harsh liquids. These things make the tilting disc check valve a smart buy for many jobs.
- Less fixing means less stopping work.
- Good sealing helps stop leaks and problems.
- It works with many kinds of fluids.
Application Suitability
Picking the right check valve depends on what you need. The STV tilting disc check valve works well in systems with fast flow. It reacts quickly when fluid changes direction. This helps stop backflow fast in busy places. The valve can handle water, oil, gas, and harsh fluids. It opens quickly and keeps things safe when flow changes fast. It opens at lower pressures than some other valves, which can help in some jobs. STV Valve Technology Group Co., Ltd is known for making many kinds of tilting disc check valves. They make 150LB, CF8M, 24 inch, wafer, and API594 tilting disc check valves. The company cares about quality and checks every valve carefully.
| Aspect | STV’s Practices | Industry Standards |
|---|---|---|
| Quality Assurance Process | API 598 tests | API 598 tests |
| Materials Used | F316 stainless steel | High-quality materials |
| Manufacturing Practices | Rigorous and safety-focused | Safety and reliability standards |
STV can make lots of valves quickly for big or small orders. Every valve is tested to meet or beat industry rules. This helps engineers feel sure about their choice.
Note: Picking the right check valve for the job helps systems work better and last longer.
Comparison Table

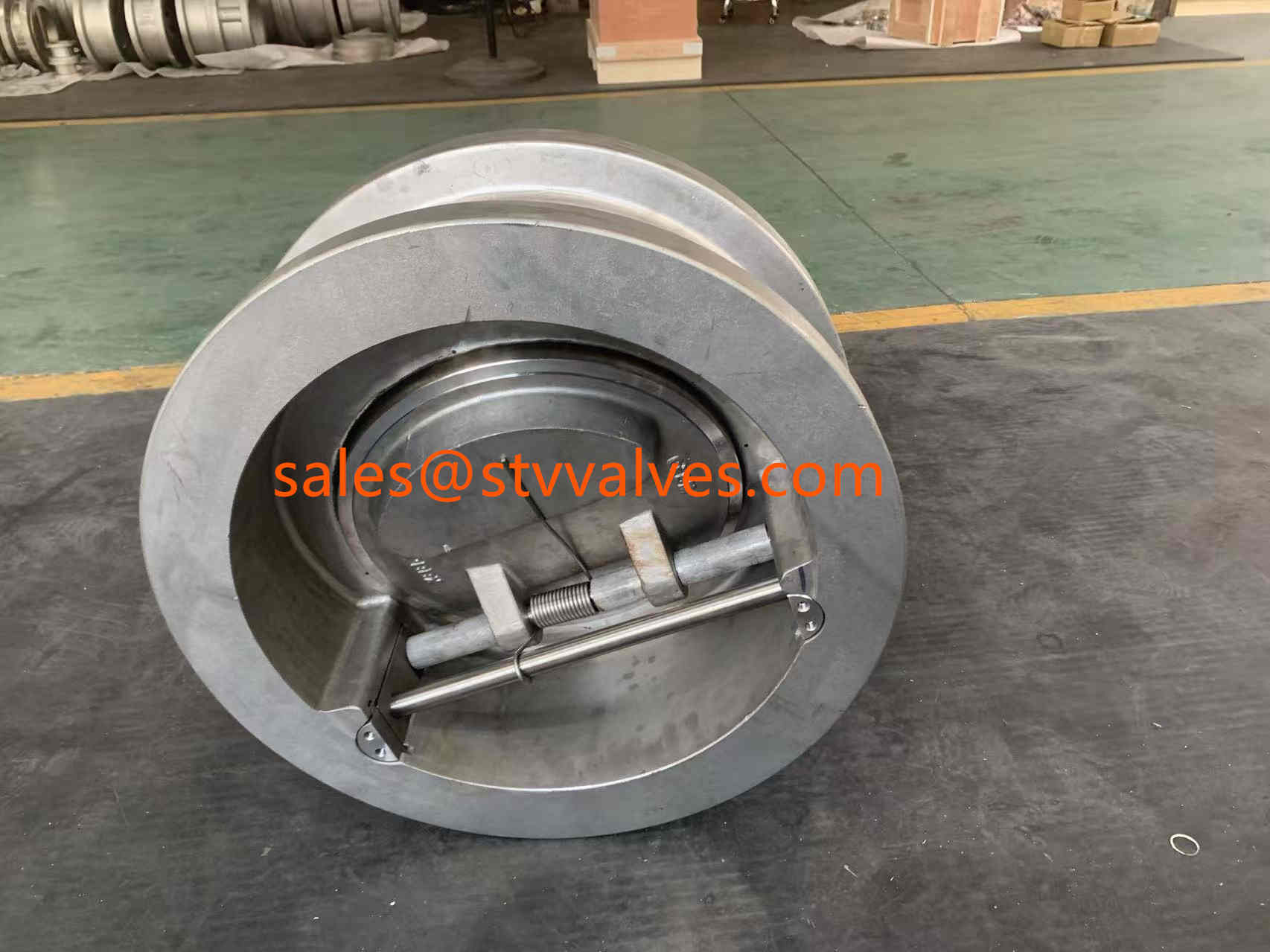

CF8M Tilting Disc Check Valve
Key Metrics
Choosing the right check valve means looking at a few things. Engineers check how well the valve lets fluid move, how it seals, how much fixing it needs, how easy it is to put in, and if it fits the job. The table below shows how the STV tilting disc check valve compares to swing, lift, and dual-plate check valves for these things.
| Metric | Tilting Disc (STV) | Swing Check Valve | Lift Check Valve | Dual-Plate Check Valve |
|---|---|---|---|---|
| Pressure Drop | Medium, optimized flow | Low | High | Low |
| Sealing | Excellent, fast closure | Good, slower closure | Very tight, gravity seal | Good, spring-assisted |
| Maintenance | Low, simple design | Moderate, disc wear | Moderate, more parts | Low, minimal wear |
| Durability | High, CF8M stainless steel | Good, depends on use | Good, for clean fluids | High, robust build |
| Installation | Compact, wafer/wafer lug | Larger, swing space | Needs vertical piping | Compact, wafer type |
| Application Range | Wide, many fluids | Water, oil, gas | Clean fluids, high pressure | Wide, many fluids |
| Standards | ASME B16.34, API594 | Varies | Varies | API594 |
Tip: The STV tilting disc check valve works well because it lets fluid move easily, seals tightly, and is simple to install. Its CF8M stainless steel body does not rust, so it is good for tough places.
Key Points:
- The tilting disc check valve from STV Valve Technology Group Co., Ltd is small and strong.
- It follows strict rules and passes API598 tests for quality.
- STV sells good valves at fair prices for big and small jobs.
Engineers can use this table to pick the best valve for their system. The STV tilting disc check valve works well in many factory jobs.
The STV Tilting Disc Check Valve is special because it lets fluid move easily, seals well, and is made from strong CF8M stainless steel. Engineers like that it is small and simple to put in. When picking a check valve, they should think about where the valve will go, how big it needs to be, if the material matches the job, and what the valve will be used for. STV Valve Technology Group Co., Ltd sells good valves for fair prices. For more help, experts say to check these things:
- Where the valve goes in the pipe
- What pressure the valve will handle
- If the material works with heat and rust
- Which valve type fits the job in the factory
FAQ

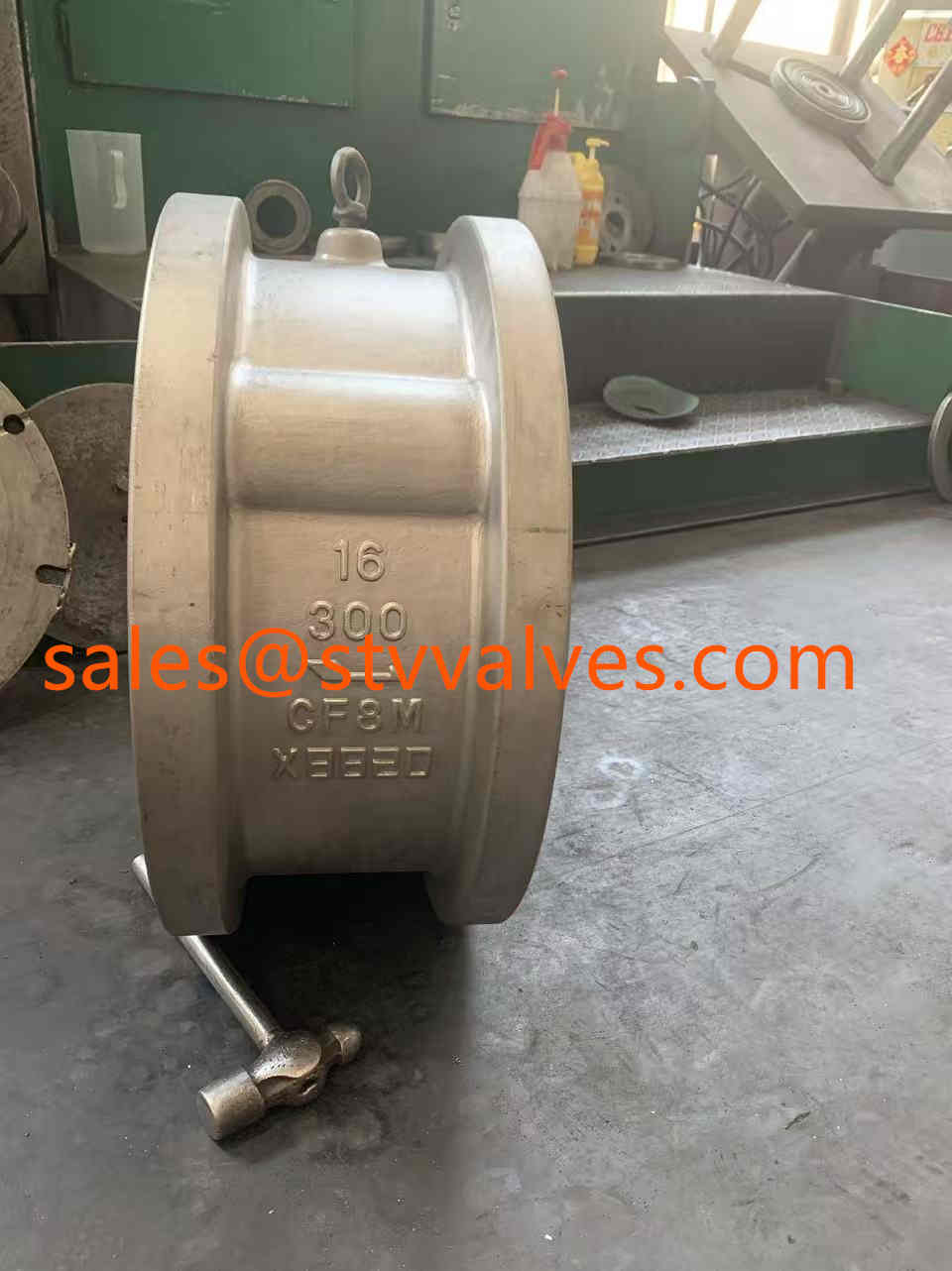

150LB Tilting Disc Check Valve
What makes the STV Tilting Disc Check Valve different from other check valves?
STV’s tilting disc check valve has a special disc shape. This shape helps the valve close fast and lets fluid move easily. It lowers pressure drop and seals better than swing or lift check valves.
Where can engineers use the STV Tilting Disc Check Valve?
Engineers put this valve in water plants, oil and gas pipes, and power plants. The valve works with liquids, gases, and some harsh fluids. Its small wafer shape fits into tight spots.
How does STV ensure product quality?
STV Valve Technology Group Co., Ltd checks every valve using API 598 rules. They use CF8M stainless steel to make the valve strong. Each valve meets ASME B16.34 and API594 standards.
What sizes and materials does STV offer?
STV makes tilting disc check valves up to 24 inches wide. They use strong CF8M stainless steel for each valve. Engineers can pick wafer or wafer lug ends for different setups.
Why do engineers choose STV Valve Technology Group Co., Ltd?
STV Valve Technology Group Co., Ltd is known for good products, fair prices, and quick shipping. They sell 150LB, CF8M, 24-inch, wafer, and API594 tilting disc check valves for many factory jobs.
