STV VALVE Delivery Cast Steel Y Strainer,600LB,Flange End

/in /by

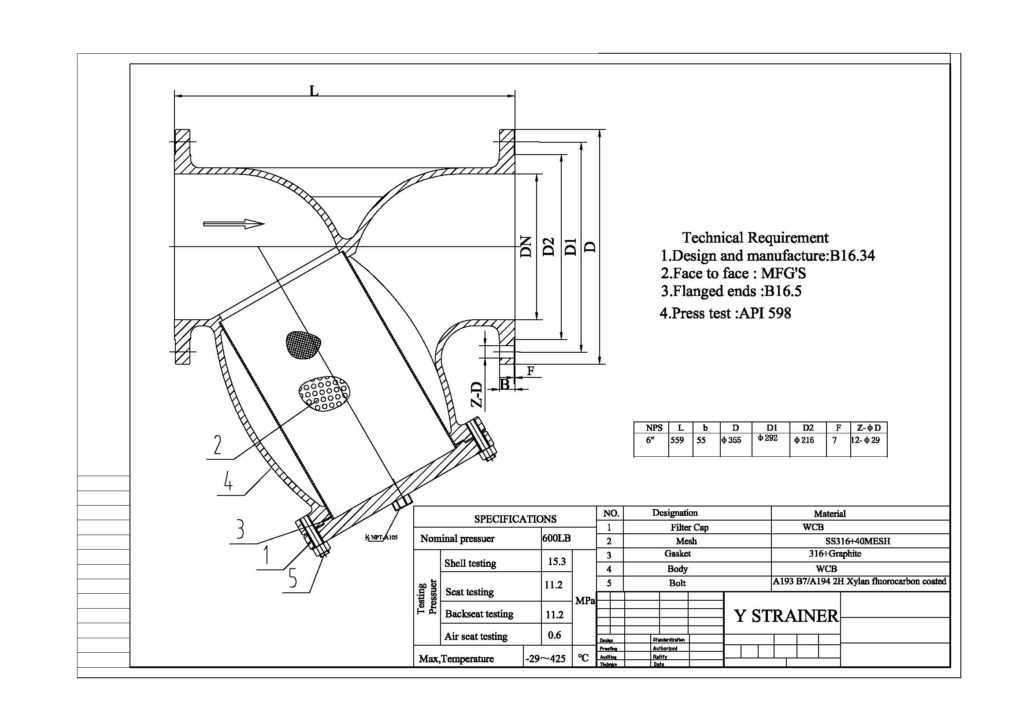

STV VALVE Delivery Cast Steel Y Strainer,600LB,Flange End



Body & Flange A216-WCB
Screen / Wire MeshSS316

Body Gasket Spiral Wound, 316 SS Graphite filled

Bolt & Nuts ASTM A193-B7 / A194-2H Xylan fluorocarbon coated

Plug ASTM A105N

Material Certification EN 10204 Type 3.1

fluid Mixture of Oil-Water
System Design Pressure  bar(g)60
System Design Temp. min/max ° C 0 to 80
Max. Permissible Pressure Drop bar(g) 0.2
Max. Pressure Drop Clean   bar(g) VTA
Piping Class CC1 (Note1)
Fluid Flow rate m3 /hr 8-200
Fluid viscosity  sSt 14,51-26,94
Operating Density  kg/m3 871,7-923,1

STV Valve Deliveried WCB Gate Valve,600LB,8 Trim,Flange End

/in /by

We win orders of cast steel gate valve,600LB,WCB,Bolt Bonnet,RF Flange End,We just delivered the goods to our Kazakhstan’s customers, and the detailed specification is as follows.





Inch Valve type DESCRIPTION QTY UNIT/USD
8 GATE GATE VALVE A216 GR.WCB 13Cr+HF(NO.8) ASME Class 600 FLGD RF BB.OS&Y GEAR OPER. 5 1015
26 GATE GATE VALVE A216 GR.WCB 13Cr+HF(NO.8) ASME Class 600 FLGD RF BB.OS&Y FLEXIBLE WEDGE 1 13000
10 GATE GATE VALVE A216 GR.WCB 13Cr+HF(NO.8) ASME Class 600 FLGD RF BB.OS&Y GEAR OPER. 1729 1729
4 GATE GATE VALVE A216 GR.WCB 13Cr+HF(NO.8) ASME Class 600 FLGD RF BB.OS&Y FLEXIBLE WEDGE 50 267
16 GATE GATE VALVE A217 GR.WC9 13Cr+HF(NO.5) ASME Class 2500 BW 51.00mm PB.OS&Y GEAR OPER. 10 20188
12 GATE GATE VALVE A217 GR.WC9 13Cr+HF(NO.5) ASME Class 2500 BW 41.00mm PB.OS&Y GEAR OPER. ) 10 10799
14 GATE GATE VALVE A216 GR.WCB 13Cr+HF(NO.5) ASME Class 600 FLGD RF BB.OS&Y GEAR OPER. 5 2909

First row is a table header

During the production , we sent some photos to client. When the valves were pressure tested, we took video and sent them. Client was quite satisfied
and replied”the valves look very nice”,please send email to us if you need the similar products.
