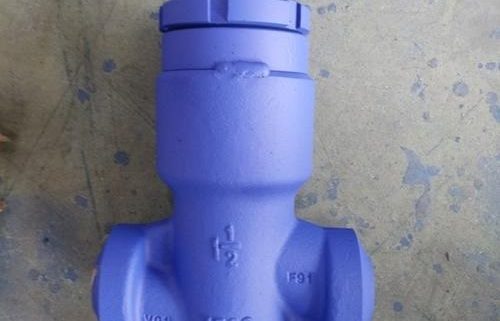

F91 Pressure forged steel self-sealing check valve

The forged steel check valve is a pressure self-tightening valve cover. The valve designed according to this design form has a valve body and a valve cover which are screwed, and the internal pressure is sealed by a self-sealing ring. The optional sealing discs are available in swing type, lift type, and ball type. The connection standard can be American or GB threaded, welded and flanged.

Design and manufacture conform to BS5351,MSS SP-118

Connection ends conform to:

1.Socket welded ends conform to ANSI B16.11

2.Screw ends conform to ANSI B1.20.1

3.Butt-welded ends conform to ANSI B16.25

4.Flange ends conform to ANSI B16.5

5.Test and inspection conform to :API 598

Structure features:

Bolted bonnet,Welded bonnet,Pressure seal bonnet

Forged Steel,Piston,Ball or Swing type

Integral Body Seat for Piston and Ball Check valves

Separated Seat Ring design for swing check valves

Spiral Wound Gasket or Oval Ring Joint gasket

Reduced Bore or Full Port,

T-Pattern or Y-Pattern,

Product Range

Body material: A105,LF2,F5,F11,F22,304,304L,316,316L,F51,F91,20#,Inconel .Ect

Nominal diameter:1/2″~2″（DN15~DN50）

End Connection: THR,SW,BW,RF,RTJ

Working temperature: -196℃~+560℃
