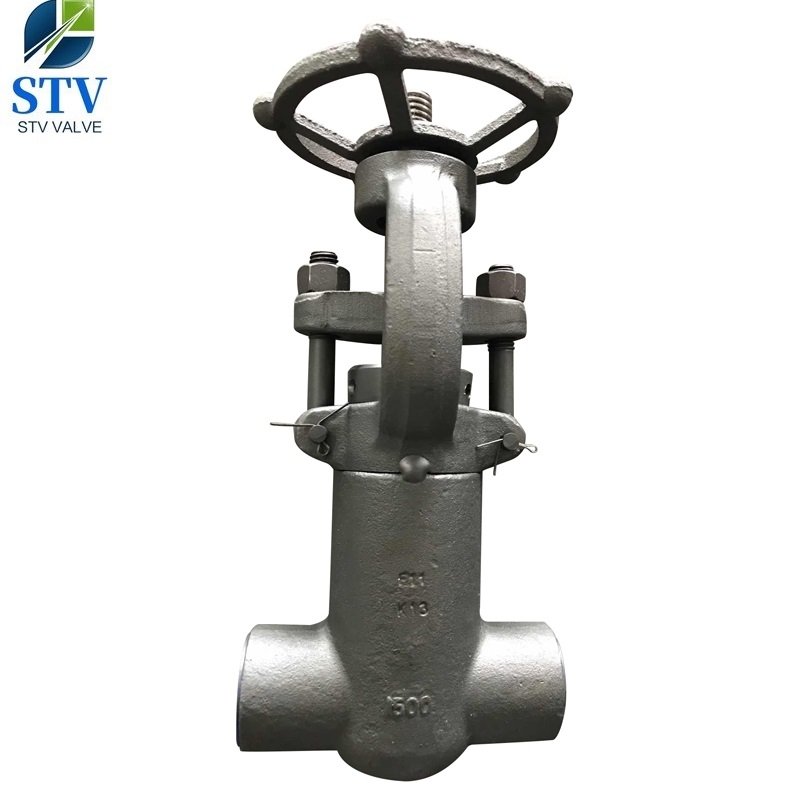

1500LB Seal Bonnet Gate Valve,API 602,A105N Body,DN50,SW End

Model:STV-PZ61-1500LB-DN50-A105N

Pressure self-tightening valve cover forged steel gate valve, the valve designed according to this connection form, the valve body and the valve cover are connected by screw mosquito, and the internal pressure is sealed from the sealing ring. The advantage is that the larger the internal pressure, the better the sealing performance.
1. Forged steel valve adopts pressure self-tightening seal, and the two ends of the valve body branch are welded.
2. The valve seat and disc sealing surface are made of cobalt-based hard alloy plasma spray welding, which has good wear resistance and scratch resistance.
3. The valve stem is treated by corrosion-resistant nitriding, which has good corrosion resistance and scratch resistance.

STV Valve Technology Group Co., Ltd is a professional leader China 1500Lb Gate Valve,Pressure Seal Bonnet Gate valve,DN50 Pressure Seal Bonnet Gate valve,Forged steel gate valve to API 602,Forged Steel Pressure Seal Bonnet Gate valve,China API 602 Pressure Seal Bonnet Gate valve Manufacturer with high quality and competitive price.

Please contact our sales@stvvalve.com for other materials and details.

Date Sheet:1500LB Seal Bonnet Gate Valve,API 602,A105N Body,DN50,SW End

Categories: , Tags: , , , ,

Description

Design and manufacture conform to BS 5352,ANSI B16.34

Connection ends conform to:

1.Socket welded ends conform to ANSI B16.11

2.Screw ends conform to ANSI B1.20.1

3..Butt-welded ends conform to ANSI B16.25

Test and inspection conform to :API 598

1) Product information: the valves supplied are mainly used for water, air, oil, gas
2) Connection type: flanged type, socket welding type, butt welding type, screw type
3) Material:
a) Body : A105, LF2, F11, F22, F304, F316, F304L, F316L
b) Disc : A105, LF2, F11, F22, F304, F316, F304L, F316L
c) Stem : F6a, F11, F22, F304, F316, F304L, F316L
d) Bonnet : A105, LF2, F11, F22, F304, F316, F304L, F316L
4) Size: 15-50mm/1/2″ – 2″
5) Pressure grade: PN16~PN100, 150Lb~2500Lb
6) Coating:Coating as per customers’ requirement
7) Package : Wooden boxes

Product Name 1500LB Seal Bonnet Gate Valve,API 602,A105N Body,DN50,SW End
1. Material A105N
2. Size 2”
4. Port Reducer Port
5. Working Pressure 1500LB
6. Connection Ends RF
7. Working Temp. -29~425ºC,
8. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
9. Operated Handwheel
10. Inspection & Testing According toAPI 598
Shipment
Delivery Time 30 Days
Package Standard Exporting Plywood Case
Shipping Port Ningbo/Shanghai, China
Shipping Terms Exw, FOB, CFR, CIF, etc.
Payment Terms T/T, Western Union, PayPal, etc.
  30% prepayment, 70% balance paid before shipping
Country of Origin Wenzhou city, China
Production Capacity 6000 ton/year
MOQ 10 PCS/size
