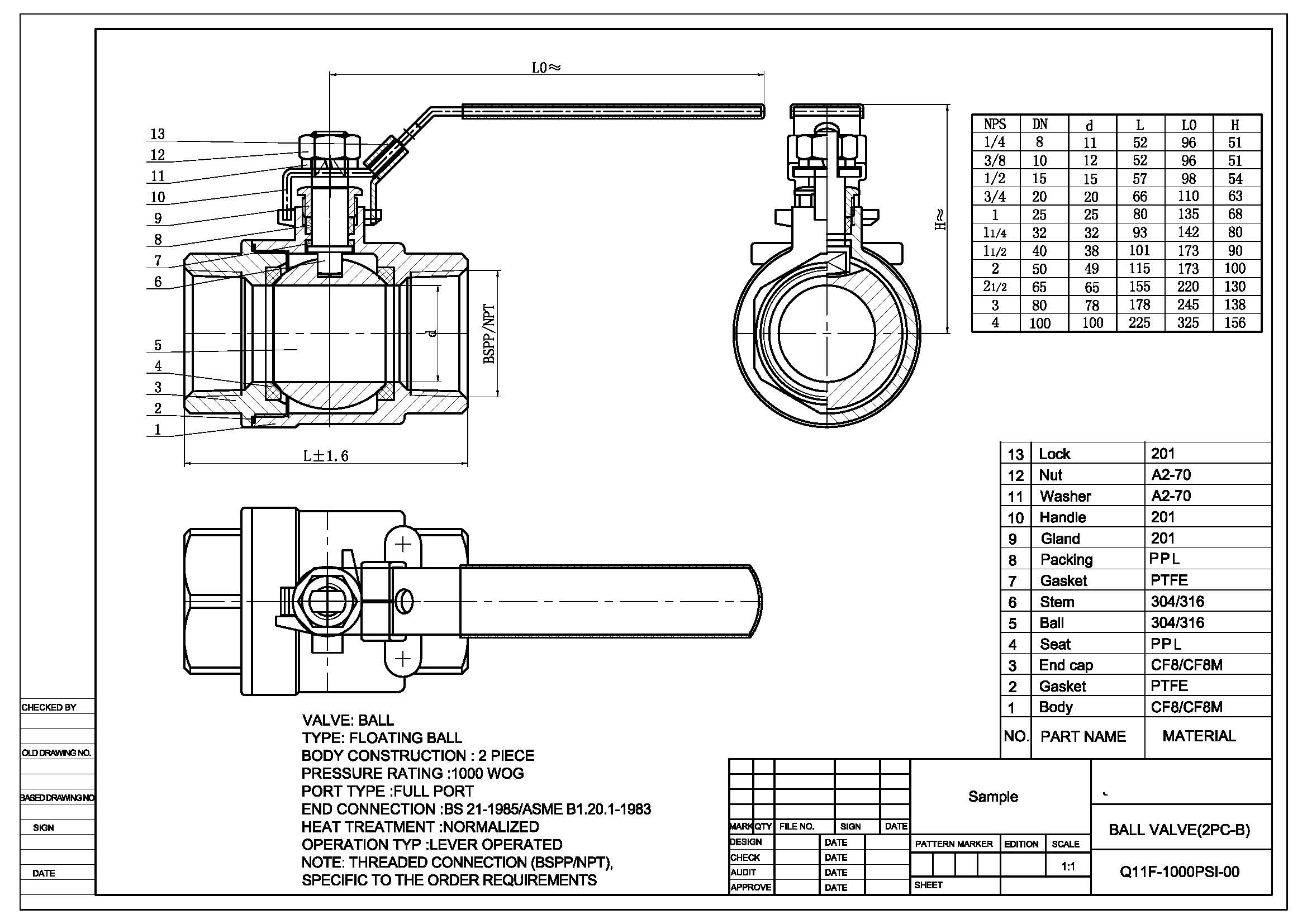

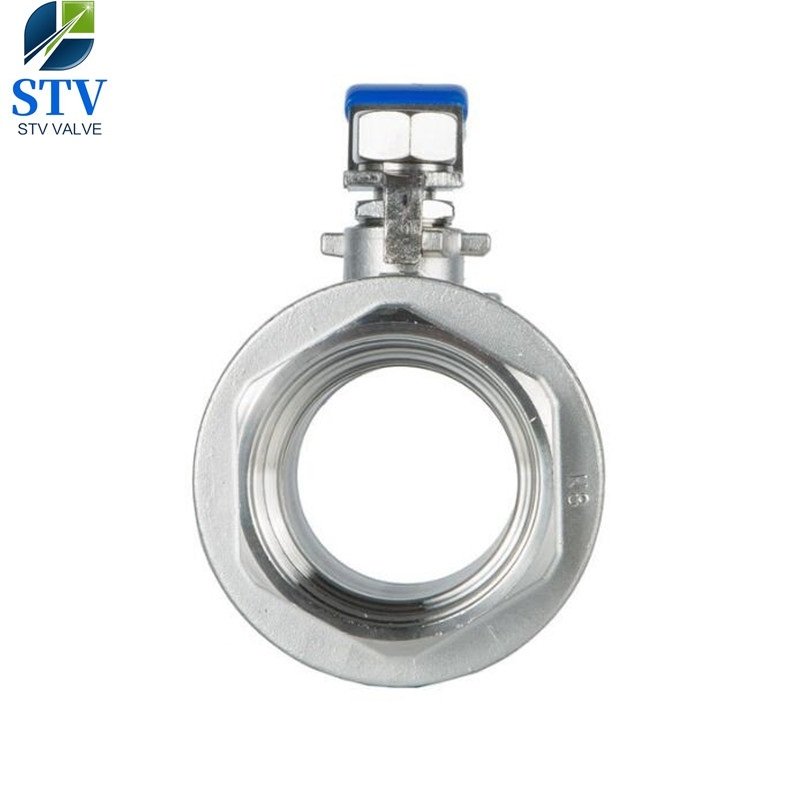

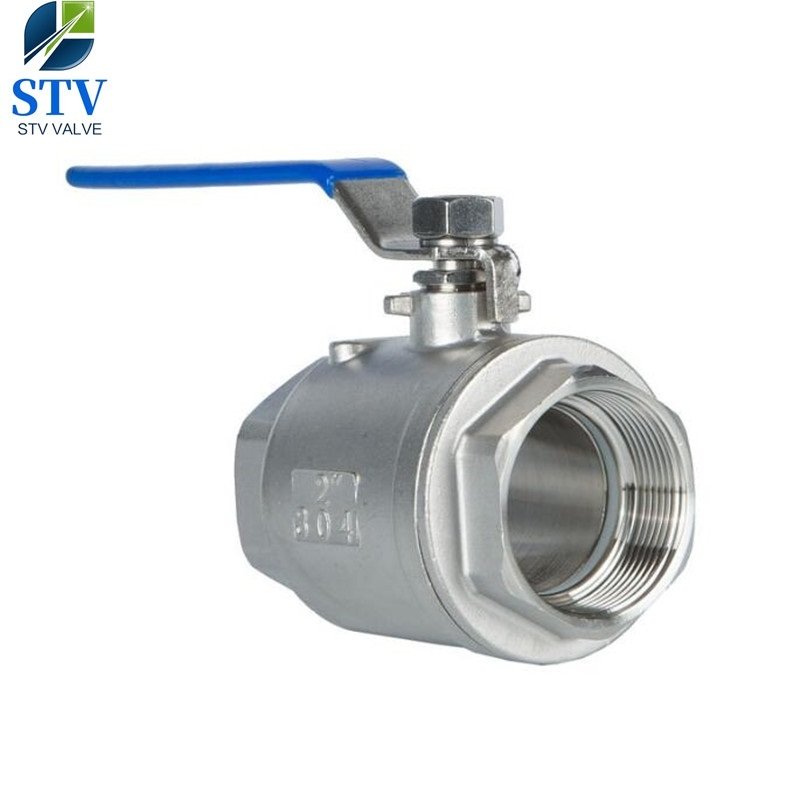

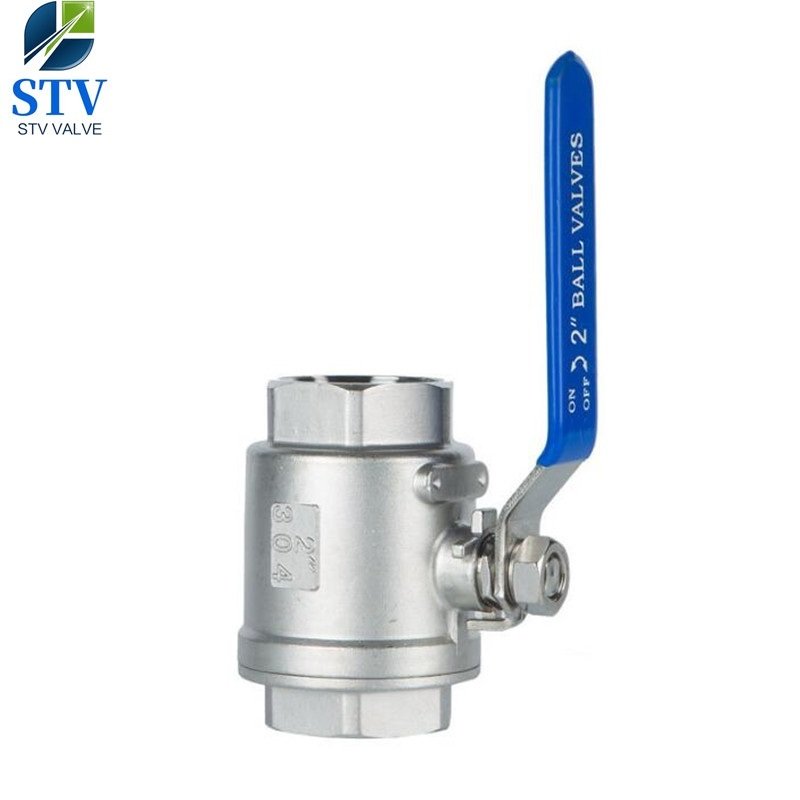

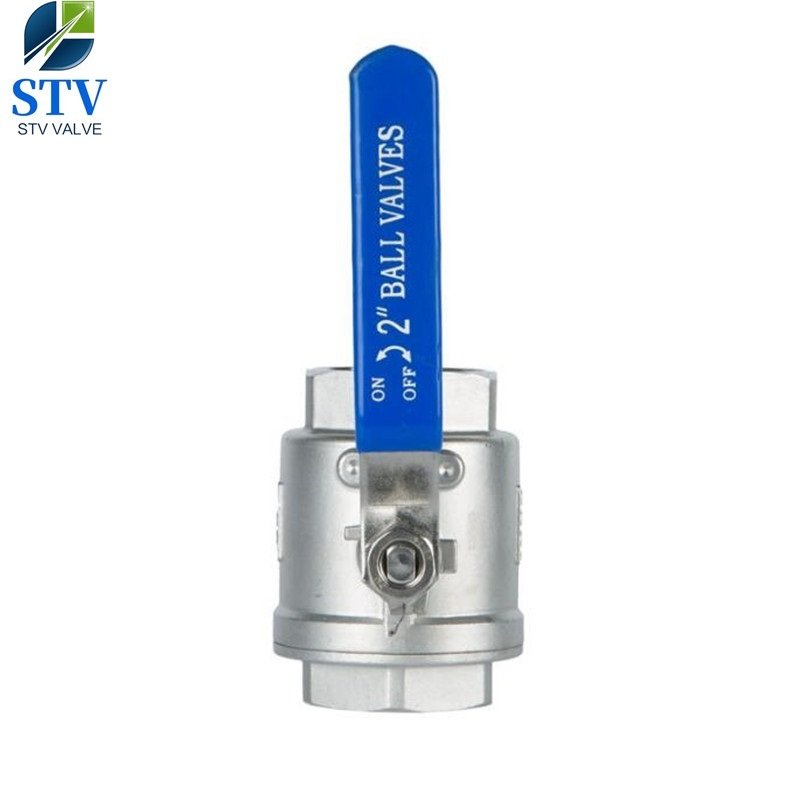

2 Piece Full Port Ball Valve is a non-maintainable full bore ball valve; providing safe operation for both general and industrial chemical applications.
general purpose ball valve that’s reliable. Stainless Steel body and Carbon Filled PTFE seat.

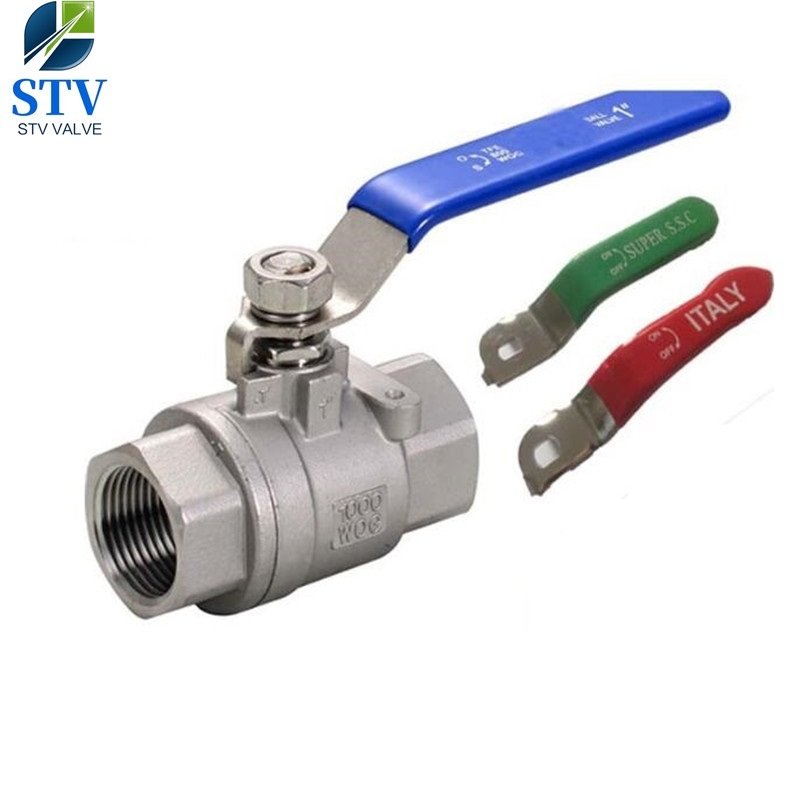

Features a blow-out proof stem and insulated grip, lockable lever handle.
Stainless Steel CF8M 316 Body
Screwed BSP, NPT

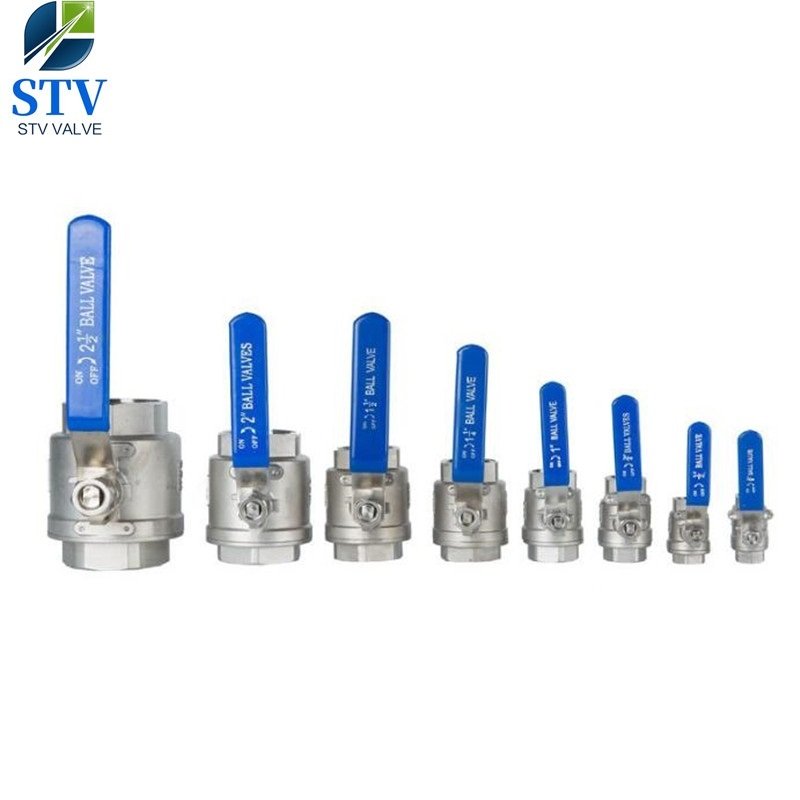

Sizes: 1/4″ to 4″
Temperature range: -20 °C to +200°C
Operating pressure: 1000 PSI (1/4″ to 2″) and 800 PSI (2 1/2″ to 4″)
Movement: 90° turn
|Product Name||2 Piece Full Port Ball Valve,CF8 Body,1000WOG,NPT End|
|4. Port||Full Port|
|5. Working Pressure||1000WOG|
|6. Connection Ends||NPT|
|7. Working Temp.||-29~180ºC,|
|8. Suitable Medium||Water, Natural Gas, Oil and some corrosive liquid|
|10. Inspection & Testing||According to API598|
|Delivery Time||30 Days|
|Package||Standard Exporting Plywood Case|
|Shipping Port||Ningbo/Shanghai, China|
|Shipping Terms||Exw, FOB, CFR, CIF, etc.|
|Payment Terms||T/T, Western Union, PayPal, etc.|
|30% prepayment, 70% balance paid before shipping|
|Country of Origin||Wenzhou city, China|
|Production Capacity||6000 ton/year|
